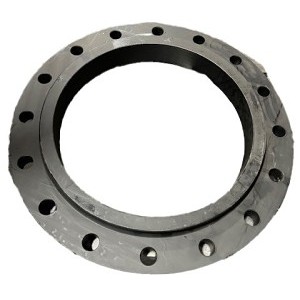

Flat Face Flange, 12 in, Slip On, 19 in OD, 12 Bolt Holes, 150 lb, Carbon Steel
PartWLDSOFF12
MFGWLDSOFF12
Description
Flat Face Flange, 12 in, Slip On, 19 in OD, 12 Bolt Holes, 150 lb, Carbon Steel
Price/Availability Accessible On Login
| Type | Flat Face |
| Nominal Size | 12 in |
| Material | Carbon Steel |
| End Style | Slip On |
| Outside Diameter | 19 in |
| Pressure Class | 150 lb |
| Number of Bolt Holes | 12 |
| Bore Type | Standard |
| Domestic/Import | Import |
| Bolt Circle Diameter | 17 in |
| Bolt Hole Size | 1 in |
| Hub Diameter | 14.38 in |
| Length Through Hub | 2.19 |
| Thickness | 1-1/4 in |
| Brand | Approved Vendors |
| Manufacturer | Approved Vendors |
| Manufacturer Part Number | WLDSOFF12 |
ANSI B16.9/B16.25|ASME SA105|ASTM A105, ASTM A105
