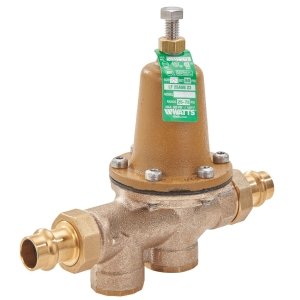

Pressure Reducing Valve, 1 in, Union Press, Bronze
PartWTTLF25AUBDUPRS1
MFG88006874
Description
WATTS®, 88006874, Water Pressure Reducing Valves, Standard, Series: LF25AUB-Z3, 1 in Nominal, Double Union Press End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 6-1/4 in Top to Inlet Center, Copper Silicon Alloy Body
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
This 1 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, with double union press connections and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
| Nominal Size | 1 in |
| End Style | Union Press |
| Material | Bronze |
| Body Material | Cast Copper Silicon Bronze |
| Dimensions | 8 in H |
| Media | Water |
| Pressure Range | 25 to 75 psi |
| Series | LF25AUB |
| Softgoods Material | EPDM Diaphragm |
| Temperature Rating | 33 to 180 deg F |
| Top to Inlet Center | 6-1/4 in |
| Trim Material | EPDM |
| Type | Standard |
| Brand | WATTS® |
| Package Width | 4 in |
| Package Height | 6.75 in |
| Alternate Part Number 1 | LF25AUB-DU-PR-Z3 1 |
| Package Length | 8.25 in |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268177695 |
| Manufacturer Part Number | 88006874 |
ASSE Certified|CSA Certified|FM Approvals|NSF Certified|UL Listed|ULC|USC|WQA Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm
For Commercial and Residential
