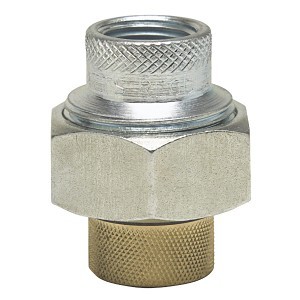

Dielectric Union, 1-1/2 in, FNPT
PartWTTLF3003112
MFG0009878
Description
WATTS® Dielectric Union, 1-1/2 in Nominal, FNPT x FBP, 2-3/4 in Length, 250 psi, Brass, 180 deg F, 3-1/2 in W
Price/Availability Accessible On Login
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Designed and manufactured to the highest quality standards
- Malleable iron adapter and nut
- Polysulfone insulator
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 deg F (82 deg C)
- FIP thread to female brass pipe thread connections
Series LF3003 Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to female brass pipe thread connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3003 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
| Fitting/Connector Type | Union |
| Nominal Size | 1-1/2 in |
| End Style | FNPT |
| Dimensions | 3-1/2 in W |
| Domestic/Import | Domestic |
| Length | 2-3/4 in |
| Material | Brass |
| Pressure Rating | 250 psi |
| Temperature Rating | 180 deg F |
| Brand | WATTS® |
| UNSPSC | 40174901 |
| Alternate Part Number 1 | LF3003 |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268430332 |
| Manufacturer Part Number | 0009878 |
1 Year Limited
PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Hot Water Storage Tanks, Water and Air Conditioners, Processing Tanks, Steam, Gas and Water Piping
