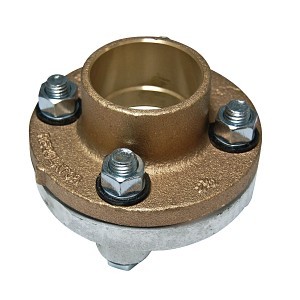

Dielectric Flange, 4 in, C x FNPT
PartWTTLF31004
MFG0821749
Description
WATTS® Dielectric Flanged Pipe Fitting, 4 in Nominal, FNPT x C, 4-3/4 in Length, 175 psi, 180 deg F, 10-1/8 in OD Flange
Price/Availability Accessible On Login
- Iron pipe thread to copper solder joint connections
- Designed and manufactured to the highest quality standards
- Lead free brass union tailpiece
- Gray iron adapter
- Zinc plated steel bolts and nuts
- Polysulfone insulator
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Maximum pressure is 50 psi (3.4 bar)
- Maximum temperature 300 deg F (149 deg C)
Series LF3100 Lead Free* Dielectric Flanged Pipe Fittings are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features an iron pipe thread to copper solder joint connection. It consists of a flange fitting and a gasket. Series LF3100 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. Maximum Pressure: 175psi.
| Fitting/Connector Type | Flange |
| Nominal Size | 4 in |
| End Style | C x FNPT |
| Dimensions | 10-1/8 in OD Flange |
| Domestic/Import | Domestic |
| Length | 4-3/4 in |
| Pressure Rating | 175 psi |
| Temperature Rating | 180 deg F |
| Brand | WATTS® |
| UNSPSC | 40175300 |
| Alternate Part Number 1 | LF3100M3 |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268792836 |
| Manufacturer Part Number | 0821749 |
Limited
ANSI B16.1|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Commercial and Residential
