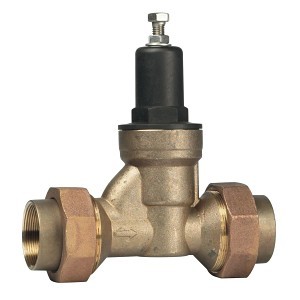

Pressure Reducing Valve, 2 in, Union FNPT, Bronze
PartWTTLFN45BDU2
MFG0009530
Description
WATTS®, 0009530, Pressure Reducing Valve, Series: LFN45B, 2 in Nominal, Double Union FNPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 9 in Inlet to Outlet Length, 8-7/8 in Top to Inlet Center, Copper Silicon Alloy Body, Thermoplastic Seat/Reinforced EPDM Diaphragm Softgoods
Price/Availability Accessible On Login
- Integral stainless steel strainer removable for cleaning
- Serviceable in line
- Sealed spring cage on all models for accessible outdoor or pit installations
- Lead free body construction
This 2 in lead free water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free cast copper silicon alloy, integral stainless steel strainer and thermal expansion bypass. It features NPT threaded double union female end connections. The maximum working pressure is 300 psi and may be adjusted from 25 to 75 psi. The standard setting is 50 psi. All parts are quickly and easily serviceable without removing the valve from the line.
| Nominal Size | 2 in |
| End Style | Union FNPT |
| Material | Bronze |
| Body Material | Cast Copper Silicon Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 9 in |
| Media | Water |
| Pressure Range | 25 to 75 psi |
| Series | LFN45B |
| Softgoods Material | Thermoplastic Seat/Reinforced EPDM Diaphragm |
| Temperature Rating | 33 to 180 deg F |
| Top to Inlet Center | 8-7/8 in |
| Brand | WATTS® |
| Package Width | 10.44 in |
| Package Height | 13.38 in |
| UNSPSC | 40141652 |
| Alternate Part Number 1 | LFN45BDU |
| Package Length | 4.06 in |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268333015 |
| Manufacturer Part Number | 0009530 |
1 Year
ASSE 1003|ANSI A112.26.2|CSA B356|IAPMO Listed|NSF/ANSI 61-G|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Commercial and Residential
Price/Availability Accessible On Login
WATTS®Pressure Reducing Valve, 2 in, Union FNPT, Bronze
