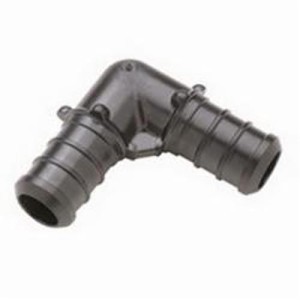

QickSert CR® 90 deg Elbow, 3/4 in, Crimp PEX, Poly
PartZRPP934
MFGQQPE44X
Description
Zurn® ZURN PEX® QickSert CR™ Hose Elbow, Fitting/Connector Type: 90 deg Elbow, 3/4 in Nominal Size, PEX Barb, 160 psi, Molded, Polymer, 200 deg F, 1.2 in W x 1.2 in H
Price/Availability Accessible On Login
- Molded from highly engineered polymers
- ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
- ASTM F2159 specification for plastic insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing and SDR9 polyethylene of raised temperature (PE-RT) tubing
Zurn PEX® QickSert CR™ Barb x Barb elbow. The QQPE_X elbow is used to make sharp 90 deg bends. Molded from Acudel®. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 PSI at 73 deg F, 100 PSI at 180 deg F, and 80 PSI at 200 deg F. These fittings are listed by NSF as complying with the following standards NSF/ANSI Standard 14, NSF/ANSI Standard 61, ASTM F877, and CSA B137.5, and ASTM F2159.
| Fitting/Connector Type | 90 deg Elbow |
| Nominal Size | 3/4 in |
| Material | Poly |
| End Style | Crimp PEX |
| Series | QickSert CR® |
| Dimensions | 1.2 in W x 1.2 in H |
| Height | 0.928 in |
| Length | 1.5 in |
| Method of Manufacture | Molded |
| Pressure Rating | 160 psi |
| Temperature Rating | 200 deg F |
| Width | 1.5 in |
| Brand | Zurn® |
| UNSPSC | 40183101 |
| Manufacturer | Zurn Water |
| UPC | 084169684080 |
| Manufacturer Part Number | QQPE44X |
ASTM F877/F2159|CSA B137.5|ANSI/NSF 14|ANSI/NSF 61|Low Lead Compliant
Hot and Cold Potable Water System
