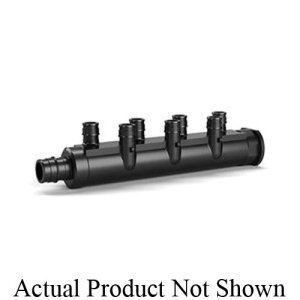

4-Port Manifold, 1 x (4) 1/2 in, Expansion PEX Mains, Poly
PartZXPQEPMC534
MFGQEPMC53-4
Description
Zurn®, QEPMC53-4, Multiport Tee, 1 x (4) 1/2 in Nominal, F1960 Expansion PEX Mains x Closed With F1960 Expansion PEX End Style, 6.92 in Length, 160 psi Pressure, Molded Method of Manufacture, CR Polymer, 73 deg F, 1.5 in W x 1.84 in H Dimensions
Price/Availability Accessible On Login
- Multi-port tees result in up to 60% fewer connections, significantly reducing opportunities for a leak
- Fast and easy installation
- Chlorine and corrosion resistant, ideal for harsh water environments
Zurn® PEX® CR Polymer F1960 Expansion Multiport Tee. The QEPMC_ is used with Zurn® Non-Barrier PEX® tubing in potable water applications. Molded from PPSU, these fittings, as a system with Zurn® PEX® tube and Zurn® PEX® reinforcing rings are pressure rated at 160 psi at 73 deg F, 100 psi at 180 deg F, and 80 psi at 200 deg F. These fittings are 3rd Party certified as complying with the following standards: NSF/ANSI Standard 14, NSF/ANSI Standard 61, NSF/ANSI Standard 372 (Low Lead), ASTM F1960, CSA B137.5.
| Fitting/Connector Type | Manifold |
| Type | 4-Port |
| Nominal Size | 1 x (4) 1/2 in |
| Material | Poly |
| End Style | Expansion PEX Mains |
| Dimensions | 1.5 in W x 1.84 in H |
| Length | 6.92 in |
| Method of Manufacture | Molded |
| Pressure Rating | 160 psi |
| Temperature Rating | 73 deg F |
| Brand | Zurn® |
| UNSPSC | 40141734 |
| Manufacturer | Zurn Water |
| UPC | 084169120359 |
| Manufacturer Part Number | QEPMC53-4 |
25 Years Limited
ARCAT|ASTM F1960|CSA B137.5|MasterSpec®|NSF/ANSI 61/372|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Potable Water
