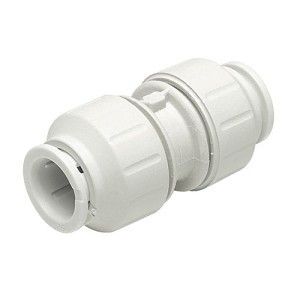

Speedfit® Coupling, 1 in, Push, Plastic
PartJGSC1
MFGPEI0436
Description
John Guest® Speedfit® Coupler, Coupling Fitting/Connector, 1 in Nominal, CTS End Style, 160 psi Pressure, 200 deg F, Plastic, White, Domestic
Price/Availability Accessible On Login
Documentation
- Push-fit connections
- Speedfit fittings can be used with - PEX, Copper and CPVC Pipes conforming to ASTM Standards
- Speedfit fittings cannot be used on stainless steel pipe
- Fittings are manufactured from high quality engineered plastic with EPDM O-rings
- Speedfit push-in system is suitable for hot and cold water plumbing applications
- Truly demountable without damage to pipe or fitting
- No risk of fire or flames
- Corrosion free and no scale build-up
- Working pressures and temperatures: 160 psi at 73 deg F, 100 psi at 180 deg F, 80 psi at 200 deg F
Push-fit plastic fitting for the connection of plastic, copper, and CPVC pipe. Designed, manufactured and assembled by John Guest Speedfit. Simply push the fitting fully onto the pipe and twist the plastic nut clockwise to lock in place. Should the need arise to demount the connection unlock the nut and push the collet towards the body of the fitting and pull the pipe to release. The fitting ensures an easier working environment in confined places, is approved for behind the wall installations, and removes the need for hot works on site. Installation can be reduced by around 40% when compared to traditional fixing methods.
| Fitting/Connector Type | Coupling |
| Nominal Size | 1 in |
| End Style | Push |
| Material | Plastic |
| Series | Speedfit® |
| Color | White |
| Domestic/Import | Domestic |
| Pressure Rating | 160 psi |
| Temperature Rating | 200 deg F |
| Brand | John Guest® |
| UNSPSC | 40183107 |
| Country of Origin | US |
| Manufacturer | Reliance Worldwide Corporation |
| UPC | 665628024922 |
| Manufacturer Part Number | PEI0436 |
cUPC Listed|ESR No 1931|NSF 61
