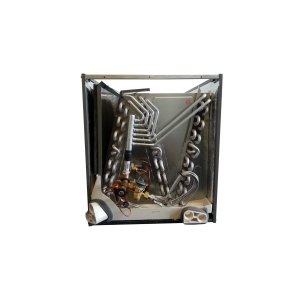

Evaporator Coil, 3 ton, Multi-Position, Cased
PartRUURCFTHM3621BC
MFGRCF3621STAMCA
Description
Rheem® Evaporator Coil, Series: RCF, 3 ton Nominal Capacity, 36000 Btu/hr Cooling, 600 to 1900 cfm, Multi-Position, R-410A, TXV Metering Device, 3/8 in Liquid Line, 3/4 in Suction Line, Aluminum Tube, Cased, 20 in H x 21 in W, Domestic
Price/Availability Accessible On Login
- Constructed of aluminum fins bonded to internally grooved aluminum tubing
- Coils are tested at the factory with an extensive refrigerant leak check
- Coils have copper sweat refrigerant connections
- Feature two sets of 3/4 in NPT condensate drain connections for ease of connection
- Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only)
- Approved for system application with variety of Rheem outdoor units
- Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
- Compatible with germicidal light system (UV resistant)
- Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right
- Unique drain pan design maximizes application flexibility and condensate removal
- N-coil design maximizes performance and minimizes height required at installation
- Feature set change, performance change
- Multi-poise orientation
- Component change, cost reduction, non-performance changes
- Gas furnace heating cfm can exceed the design cooling cfm
- Ductwork and coil selection must accommodate the higher of the cooling or gas heating cfm to prevent furnace limit tripping, excessive noise, and coil freeze-up
- Note: flanges are provided for field installation
RUUD® indoor replacement coils are designed for use with RUUD outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow and when matched with RUUD outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW].
| Type | Cased |
| Air Flow Type | Multi-Position |
| Nominal Capacity | 3 ton |
| Cooling Capacity | 36 Kbtu/hr |
| Dimensions | 20 in H x 21 in W |
| Domestic/Import | Domestic |
| Enclosure Type | Cased |
| Flow Rate | 600 to 1900 cfm |
| Liquid Line Size | 3/8 in |
| Metering Device | TXV |
| Refrigerant Type | R-410A |
| Series | RCF |
| Suction Line Size | 3/4 in |
| Tubing Material | Aluminum |
| Brand | RUUD® |
| Package Width | 22.75 in |
| Package Height | 28.5 in |
| UNSPSC | 40101718 |
| Package Length | 22.81 in |
| Item Width | 21 in |
| Item Length | 21.6875 in |
| Country of Origin | US |
| Item Height | 28 in |
| Manufacturer | Rheem Manufacturing |
| UPC | 662021306709 |
| Manufacturer Part Number | RCF3621STAMCA |
Parts: Five (5) Years
UL Listed
For gas and oil furnaces
