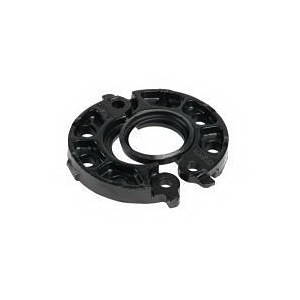

Flange Adapter, 4 in, Groove x Flange, Ductile Iron, Galvanized
PartVFGFA3004
MFGL040743GE0
Description
Victaulic® Vic-Flange® Adapter, Series: 743, 4 in Nominal, Flanged x Grooved, 300 lb, 720 psi, Ductile Iron, Hot Dipped Galvanized, 4.5 in OD x 1.13 in W
Notice
Price/Availability Accessible On Login- NON-CANCELLABLE FROM VENDOR, ALL SALES FINAL
- ANSI Class 300 flanges
- Sizes from 2 – 12″
- 50 – 300 mm
- Pressures up to 720 psi
- 4964 kPa
- 50 bar
Permits direct connection of ANSI Class 300 flanged components into a grooved system. Compatible with raised-face and flat-face flanges. Working pressures shown are based on standard wall carbon steel pipe roll or cut grooved in accordance with Victaulic specifications.
| Fitting/Connector Type | Adapter |
| Type | Flange |
| Nominal Size | 4 in |
| End Style | Groove x Flange |
| Material | Ductile Iron |
| Finish | Galvanized |
| Bolt Circle Diameter | 7.87 in |
| Bolt Size | 3/4 x 3-3/4 in |
| Dimensions | 4.5 in OD x 1.13 in W |
| Flange Diameter | 10 in |
| Number of Bolts | 8 |
| Pressure Class | 300 lb |
| Pressure Rating | 720 psi |
| Series | 743 |
| Brand | Victaulic® |
| UNSPSC | 40171704 |
| Manufacturer | Victaulic |
| UPC | 688304493669 |
| Manufacturer Part Number | L040743GE0 |
ASTM A536 Grade 65-45-12|cULus Listed|LPCB Approved|VDS Approved
Notice
Price/Availability Accessible On Login- NON-CANCELLABLE FROM VENDOR, ALL SALES FINAL
Victaulic®Flange Adapter, 4 in, Groove x Flange, Ductile Iron, Galvanized
