Reduced Pressure Backflow Preventer, 3 in, Flange, Stainless Steel
PartWTT957ZNRSFS3
MFGF111615
Description
WATTS®, F111615, Backflow Preventer, Kit, Series: 957-FS, 3 in Nominal, Flange Joint End Style, 175 psi Pressure, 33 to 140 deg F, 7.5 fps Flow Rate, Non-Rising Stem Resilient Seated Gate Valve Ball Valve/Gate Valve, Reduced Pressure Zone Backflow, Media: Water, Stainless Steel Body, 31-3/4 in W x 10-1/2 in D Dimensions, Domestic
Price/Availability Accessible On Login
- Replaceable check disc rubber
- Groove couplings for ease of installation and pipe alignment
- Furnished with a cubic foot per minute meter
- Compact design allows small enclosures to be used
- Patented torsion spring check modules for ease of serviceability
- UL and FM grooved gear operated butterfly valves with tamper switch
- Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
- 304 (Schedule 40) stainless steel housing and sleeve
- The maximum working pressure is 175 psi (12.06 bar)

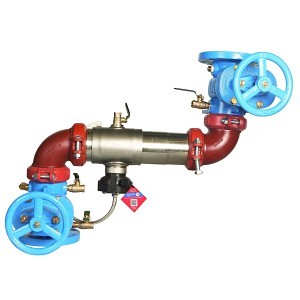

This 3 inch reduced pressure zone assembly backflow preventer help stop the reverse flow of liquids due to backpressure or backsiphonage, where potential health hazard exists. This extremely compact and lighter than a traditional designed assembly is approved for horizontal Z pattern installation as long as the backflow assembly is installed in accordance with the direction of the flow arrow. This assembly consists of a stainless steel body with a quick access sleeve, torsion spring check valves, resilient seated gate valves with non-rising stem, test cocks, and a corrosive resistant stainless steel bottom mounted pressure relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor relays a signal that triggers notification of potential flooding to service personnel. The add-on sensor connection kit is available for building management systems and cellular communication.
| Nominal Size | 3 in |
| End Style | Flange |
| Body Material | Stainless Steel |
| Series | 957-FS |
| Backflow Type | Reduced Pressure Zone |
| Ball Valve/Gate Valve Type | Non-Rising Stem Resilient Seated Gate Valve |
| Dimensions | 31-3/4 in W x 10-1/2 in D |
| Domestic/Import | Domestic |
| Flow Rate | 7.5 fps |
| Media | Water |
| Pressure Rating | 175 psi |
| Temperature Rating | 33 to 140 deg F |
| Type | Kit |
| Brand | WATTS® |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268503128 |
| Manufacturer Part Number | F111615 |
1 Year
N-No UL Code Rating|ASSE 1013|CSA B64.4|cULus Classified|FM Approved|NSF/ANSI 691-G|PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
