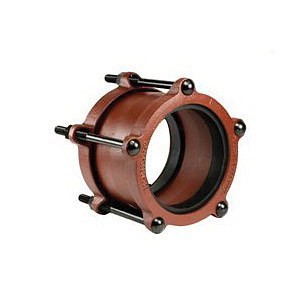

210 Ductile Iron Repair Coupling, 2 in, 5 in L, Ductile Iron
PartJCM2100250
MFG210-0250
Description
JCM Industries Pipe Coupling, Series: 210, Fitting/Connector Type: Coupling, 2 in Nominal, 150 psi, Ductile Iron, -40 to 150 deg F, 2.34 to 2.63 in OD
Price/Availability Accessible On Login
- Corrosion resistant shop coat paint primer finish
- For applications with high density polyethylene pipe, refer to the JCM HDPE fittings manual or contact JCM industries
- Ductile iron sleeves and flange
- Applications in which the pipe may move out of the clamp, proper anchorage of the pipe must be provided
- No of bolts: 2
- Fits steel, PVC, cast iron pipe
- Styrene-butadiene rubber gaskets
- 5 in Sleeve
The standard wide range coupling for joining Cast Iron, Ductile Iron, A/C, C-900/C-905 PVC and other types of pipe. Sizes 2 to 24 in.
| Type | Ductile Iron |
| Pipe Size | 2 in |
| Length | 5 in |
| Material | Ductile Iron |
| Series | 210 |
| Dimensions | 2.34 to 2.63 in OD |
| Domestic/Import | Import |
| Fitting/Connector Type | Coupling |
| Nominal Size | 2 in |
| Pressure Rating | 150 psi |
| Temperature Rating | -40 to 150 deg F |
| Brand | JCM Industries |
| UNSPSC | 40172604 |
| Manufacturer | JCM Industries |
| UPC | 670397128429 |
| Manufacturer Part Number | 210-0250 |
ASTM A536|JCM 200 Series Ductile Couplings are ANSI/NSF Standard 61 and Annex G Certified and Meet or Exceed The ANSI/AWWA C-219
High Temperatures or Chemical Pipelines
