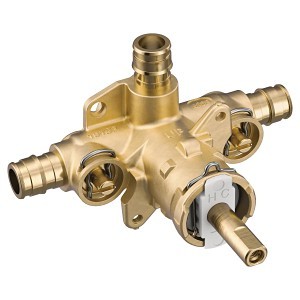

Posi-Temp® M-Pact® Pressure Balancing Valve, 1/2 in, Cold Expansion PEX Inlet x 1/2 in, Cold Expansion PEX Outlet, Brass Body
PartSTM2328PF
MFG2328PF
Description
Moen® Pressure Balancing Valve, Series: Posi-Temp® M-Pact®, 1/2 in Cold Expansion PEX Inlet Connection, 1/2 in Cold Expansion PEX Outlet, For Use With: Posi-Temp® Tub/Shower, Wall Mount, Brass Body, Domestic
Price/Availability Accessible On Login
- Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
- Cartridge type
- No of ports
Changing the look of your bathroom has never been faster and easier. The M-Pact® Common Valve System allows you to upgrade the trim style or swap out finishes on your fixtures without replacing the valves. So once the system is in place, you can change your decor as often as you want at any point in time during construction process or years down the road. All it takes is a few minutes. Best of all, the M-Pact® Common Valve System is as easy to install as a standard valve.
| Nominal Size | 1/2 in |
| End Style | Expansion PEX x C Stub Out |
| Body Material | Brass |
| Connection Size | 1/2 in |
| Connection Type | Expansion PEX x C Stub Out |
| Domestic/Import | Domestic |
| Inlet Connection | 1/2 in Cold Expansion PEX |
| Mounting Type | Wall |
| Outlet Connection | 1/2 in Cold Expansion PEX |
| Series | Posi-Temp® M-Pact® |
| Suitable For Use With | Posi-Temp® Tub/Shower |
| Brand | Moen® |
| Package Width | 7 in |
| Package Height | 6 in |
| UNSPSC | 30181800 |
| Package Length | 7 in |
| Country of Origin | US |
| Manufacturer | Moen |
| UPC | 026508312346 |
| Manufacturer Part Number | 2328PF |
Adjustable Temperature Limit Stop and Quarter Turn Stop
Lifetime Limited Warranty Against Leaks, Drips and Finish Defects to the Original Homeowner/10 years Limited for Multifamily Installation/5 years Limited for Commercial Installation
ASME A112.18.1/CSA B 125.1|ASSE 2016
Price/Availability Accessible On Login
Moen®Posi-Temp® M-Pact® Pressure Balancing Valve, 1/2 in, Cold Expansion PEX Inlet x 1/2 in, Cold Expansion PEX Outlet, Brass Body
