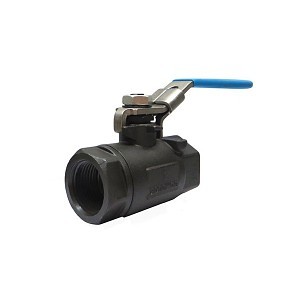

2-Piece Ball Valve, 1 in, FNPT, Reduced Port, Stainless Steel Ball, Carbon Steel
PartMIL20CS0RN1LL1
MFG20CS0R-N1-LL100
Description
Milwaukee Valve Ball Valve, 2-Piece, Series: 20CS, 1 in Nominal, FNPT End Style, 2000 psi WOG Pressure, Reduced Port, 7/8 in Orifice, Latch-Lock Handle Actuator, 316 Stainless Steel Ball, 3-1/4 in Inlet to Outlet Length, 2.24 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Stem and NXT75 Seat Trim, PTFE Softgoods, Import
Price/Availability Accessible On Login
- N1: NXT standard seat
- LL - Patented stainless latch-lock handle
- Multiple V-ring stem packing arrangement for longer packing life
- Vent hole in ball slot for cavity venting
- Mounting pad for easy actuation
- NACE compliant fastener for sour gas service
- Blow-out proof stem
- Cantilever seat design for low operating torque
- Valve is rated 150 psi steam at 365 deg F
- 2-piece adaptor loaded
- Wrought carbon steel body
- PTFE seal/packing and nxt75 thrust washer
| Nominal Size | 1 in |
| End Style | FNPT |
| Port Type | Reduced |
| Construction | 2-Piece |
| Material | Carbon Steel |
| Ball Material | Stainless Steel |
| Actuator Type | Latch-Lock Handle |
| Body Material | Carbon Steel |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3-1/4 in |
| Orifice Size | 7/8 in |
| Pressure Rating | 2000 psi |
| Series | 20CS |
| Softgoods Material | PTFE |
| Top to Inlet Center | 2.24 in |
| Trim Material | 316 Stainless Steel Stem and NXT75 Seat |
| Brand | Milwaukee Valve |
| UNSPSC | 40141607 |
| Country of Origin | CN |
| Manufacturer | Milwaukee Valve |
| UPC | 697988658691 |
| Manufacturer Part Number | 20CS0R-N1-LL100 |
ASTM A216 Body|ASTM A276 Ball/Stem|MSS SP 110|NACE MRO175
