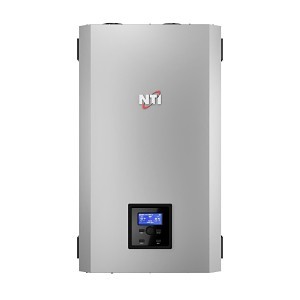

FTVN II Boiler, 150 Kbtu/hr, Natural/Propane
PartNTIFTVN150CS2
MFG3314313
Description
NTI, 3314313, Condensing Boiler, High Efficiency, Series: FTVN Series II, Liquid Propane/Natural Gas Fuel, 15000 to 150000 Btu/hr Input, MNPT Connection, Electronic Ignition, 138 MBtu/hr DOE Heating, 95 % AFUE, 120 V, 12 A, Direct Vent, Stainless Steel Housing Material, Wall Hung Mounting, 38-1/4 in H x 19-3/4 in W x 18-1/2 in D Dimensions
Price/Availability Accessible On Login
- SA-240 S43932 Chromium Stainless Steel Fire Tube Heat Exchanger
- Maximum operating pressure 50 psi
- Zero clearance to combustibles
- Modulating burner, 10:1 turndown ratio
- Certified as Direct Vent (sealed combustion) or for use with indoor combustion air
- Sealed cabinet
- High energy ignition transformer
- Built-in water pressure bypass
- Low water pressure sensor
- Integrated ECM boiler circulator
- Integrated 3-way valve
- Integrated Condensate Trap
- Setup Wizard
- Two dry contact inputs for CH and 2 dry contact outputs for zone control
- Wi-Fi remote connectivity embedded
- Outdoor temperature sensor input
- Adjustable flue temperature limit
The FTVN Series II is a high efficiency, wall hung boiler using a durable, vertical down-fired stainless heat exchanger. With a new interface providing a smooth user experience, designed to help you achieve more with less effort, 10:1 modulation and 96% AFU, an integrated ECM pump and DHW diverter, quick connect components, WIFI connectivity for remote monitoring and alert notifications, the FTVN is an ideal solution for your 'peace of mind', home heating needs.
| Type | Boiler |
| Series | FTVN Series II |
| Heating Capacity | 150 KBtu/hr |
| Fuel Type | Natural/Propane |
| AFUE Rating | 95 % |
| Amperage Rating | 12 A |
| Connection Type | MNPT |
| Dimensions | 38-1/4 in H x 19-3/4 in W x 18-1/2 in D |
| DOE Heating Capacity | 138 MBtu/hr |
| Housing Material | Stainless Steel |
| Ignition Type | Electronic |
| Input Capacity | 15000 to 150000 Btu/hr |
| Mounting Type | Wall Hung |
| Vent Type | Direct |
| Voltage Rating | 120 V |
| Brand | NTI |
| Manufacturer | NTI Boilers |
| UPC | 628233739148 |
| Manufacturer Part Number | 3314313 |
10 Years
ANSI Z21.13|CSA 4.9|AHRI Certified|ASME H
