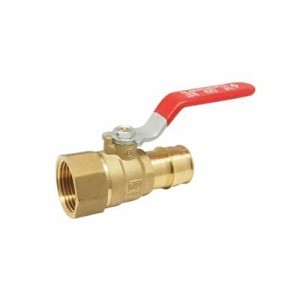

1-Piece Ball Valve, 1 in, Expansion PEX x FNPT, Standard Port, Plated Brass Ball, Brass
PartRED5016AB1
MFG5016AB 1
Description
RWV® Ball Valve, Lead Free, Series: 5016AB, 1 in Nominal, Barb x FNPT, 400 lb WOG, 15 to 160 deg F, Standard Port, 0.73 in Orifice, Chrome Plated Low Lead Brass Ball, 3.23 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, Double NBR Softgoods
Price/Availability Accessible On Login
Documentation
- Blow-out proof stem
- F1960 certifications for pex expansion pipe fittings
- Double NBR O-ring/packing
| Nominal Size | 1 in |
| End Style | Expansion PEX x FNPT |
| Port Type | Standard |
| Construction | 1-Piece |
| Material | Brass |
| Ball Material | Plated Brass |
| Body Material | Brass |
| Inlet to Outlet Length | 3.23 in |
| Orifice Size | 0.73 in |
| Pressure Rating | 400 psi |
| Series | 5016AB |
| Softgoods Material | Double NBR |
| Temperature Rating | 15 to 160 deg F |
| Top to Inlet Center | 1.77 in |
| Trim Material | Low Lead Brass Stem and PTFE Seat |
| Brand | RWV® |
| UNSPSC | 40141607 |
| Manufacturer | Red-White Valve |
| UPC | 670779709758 |
| Manufacturer Part Number | 5016AB 1 |
ASTM-F1960|AB1953|ANSI/NSF-61-G/372|CSA B125.3 Certified|cCSAus Certified|TL Certified|UNS C27453 Body/Ball/Stem and ASTM-36 Handle
For use With PEX Tubing
