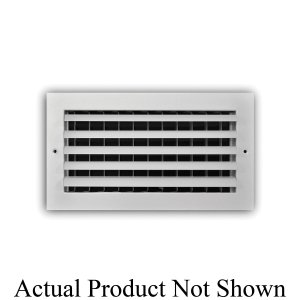

1-Way Curved Blade Supply Register, 14 x 6 in, Horizontal Blades, Multi Shutter Damper, Aluminum, White
PartTRUA301HM14X06
MFGA301HM14X06
Description
TRUaire™ Supply Register, 1-Way, Series: A301HM, 14 x 6 in, 15-3/4 in Overall Width, 2-1/4 in Overall Depth, Adjustable Horizontal Curved Fin Blade, 340 cfm, 0.295 sq-ft, 1/2 in Blade Spacing, Aluminum, Pristine White Powder Coated, Import
Price/Availability Accessible On Login
- One-piece frame construction
- Counter-sunk recessed screw holes
- Individually adjustable curved blades
- Durable pristine white powder coated finish
- Corner block directional air way control fin is encased in roll formed aluminum
- Aluminum face and steel louver
The A301HM series is a 1-Way Aluminum Adjustable Curve Blade Register. Each individual curve blade is fully adjustable for total control. The outside frame is slightly beveled.
| Type | Sidewall/Ceiling Supply Grilles & Registers |
| Material | Aluminum |
| Width | 14 in |
| Height | 6 in |
| Finish/Color | White |
| Damper Type | Multi Shutter |
| Blade Spacing | 1/2 in |
| Blade Type | Adjustable Horizontal Curved Fin |
| Color | White |
| Domestic/Import | Import |
| Effective Area | 0.295 sq-ft |
| Finish | Pristine White Powder Coated |
| Flow Rate | 340 cfm |
| Overall Depth | 2-1/4 in |
| Overall Width | 15-3/4 in |
| Series | A301HM |
| Size | 14 x 6 in |
| Brand | TRUaire™ |
| Package Width | 15.75 in |
| Package Height | 7.75 in |
| UNSPSC | 40101600 |
| Alternate Part Number 1 | A301HM 14X06 |
| Package Length | 2 in |
| Country of Origin | VN |
| Manufacturer | RectorSeal |
| UPC | 803492751302 |
| Manufacturer Part Number | A301HM14X06 |
SmoothGlide™ Multi-Shutter Damper
Residential Ceiling/Sidewall Openings
