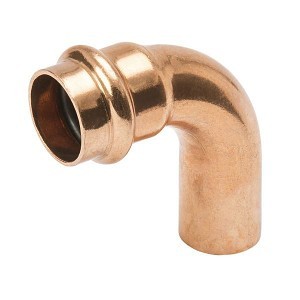

Street 90 deg Elbow, 1/2 in, Fitting x Press, Copper, 1/2 in OD x 1/2 in
PartMPRS912
MFGPF 02822
Description
Streamline® PRS™ Lead Free Small Street Elbow, Long Radius, Fitting/Connector Type: 90 deg Elbow, 1/2 in Nominal, Fitting x Press, 200 psi, -20 to 250 deg F, Wrought Copper, 1.81 in L x 0.93 in W x 2.04 in H
Price/Availability Accessible On Login
- Fast and easy to use
- Flameless
- Permanent connection
- Large selection of fittings
- Consistent professional appearance
- Less equipment required
- Environmentally friendly system
- Compatibility of fittings and tools
Streamline® PRS™ is Mueller Industries solution for professionals choosing to join copper tubing through the use of press technology. The company's Streamline® brand has been the trusted name in copper piping systems since 1930. With Streamline® PRS™ this heritage of quality and reliability is now available for contractors preferring flameless, mechanical press joining.
| Fitting/Connector Type | 90 deg Elbow |
| Nominal Size | 1/2 in |
| Type | Street |
| End Style | Fitting x Press |
| Material | Copper |
| Outside Diameter | 1/2 in OD x in |
| Dimensions | 1.81 in L x 0.93 in W x 2.04 in H |
| Pressure Rating | 200 psi |
| Temperature Rating | -20 to 250 deg F |
| Brand | Streamline® |
| UNSPSC | 40183102 |
| Manufacturer | Mueller Industries |
| UPC | 685768395775 |
| Manufacturer Part Number | PF 02822 |
50 Years Limited
ASME B16.51|ABS Certification|CSA TIL-MSE-13|IAPMO PS-117|ANSI/NSF 61-G/372|Tier II PDA|Class III Applications|UPC Listed and USA Lead Free Compliant - Wetted Surface Contains Less than 0.25% Lead by Weight
Potable Water, Hydronic Heating (with Glycol), Chilled Water, Compressed Air (200 psi Max), Non-Medical Gases (140 psi Max), Low Pressure Steam (15 psi Max), Vacuum (24.5 in Mercury Max at 68 deg F), Mechanical Systems, Residential and Commercial Plumbing
Price/Availability Accessible On Login
Streamline®Street 90 deg Elbow, 1/2 in, Fitting x Press, Copper, 1/2 in OD x 1/2 in
