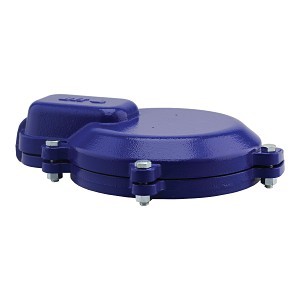

Locking Watertight Well Cap, For Use With 6 in ID x 6-5/8 in OD Steel or PVC Well Casings, 1 in, FNPT, Cast Iron
PartBOSWTCC6CI
MFGWTCC-6-CI
Description
Boshart Industries Watertight Well Cap, Lead Free Locking, Series: WTCC Series, For Use With: 6 in ID x 6-5/8 in OD Steel or PVC Well Casings, Specifications: 1 in FNPT, Cast Iron, Powder Coated, 11.39 in L x 9.65 in W x 2.44 in H
Price/Availability Accessible On Login
Documentation
Boshart Industries watertight well caps have a wide gasket that provides a positive compression seal between the well casing and cap as well as the cap cover and retainer ring. This well cap is designed with a deep pocket for sealing unevenly cut casings as the gasket will seal as far as 1-1/2 in from the top of the casing. Compression is achieved by tightening five bolts. They feature two large screened air vents making them vermin proof. This design offers increased clearance for submersible pump cable. Locking feature provides a secure/tamper proof installation. Lock not included.
| Type | Cap |
| Nominal Size | 6 in |
| Material | Cast Iron |
| Dimensions | 11.39 in L x 9.65 in W x 2.44 in H |
| Finish | Powder Coated |
| Series | WTCC |
| Specifications | 1 in FNPT |
| Suitable For Use With | 6 in ID x 6-5/8 in OD Steel or PVC Well Casings |
| Brand | Boshart Industries |
| Package Width | 11.8 in |
| Package Height | 10.7 in |
| UNSPSC | 40141700 |
| Package Length | 21.1 in |
| Country of Origin | TW |
| Manufacturer | Boshart Industries |
| UPC | 777808064847 |
| Manufacturer Part Number | WTCC-6-CI |
Water System Council PAS-97
