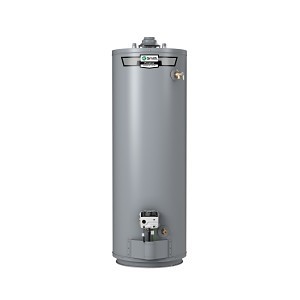

ProLine® XE Atmospheric Tall Residential Water Heater, 40 gal, Natural Gas, 40 Kbtu/hr, Ultra Low NOx, 0.65 Energy Factor
PartAOSLN40NT2PD
MFG100272476
Description
AO Smith® ProLine® XE Gas Water Heater, Commercial-Grade Flue Damper High Efficiency, Series: 100, 40000 Btu/hr Heating, Natural Gas Fuel, 1/2 in Gas Connection, 40 gal Tank, Electronic Ignition, Standard Vent, 3 or 4 in Vent, Non-Condensing/Non Condensing: Condensing, 42 gph at 90 deg F Rise Recovery Rate, 0.65, CoreGard™ Magnesium Anode Rod Heating Element, 3/4 in NPT Water Connection, 150 psi Pressure, 55 to 155 deg F, Tall or Short: Tall, Ultra Low NOx: Yes, Blue Diamond® Glass Coated, 20 in Dia x 64-1/4 in H Dimensions
Notice
Price/Availability Accessible On Login- Only the following branch locations are authorized to sell AO Smith: Redding, Chico, Susanville & Medford. Please email our Water Heater Division with any questions.
- Enhanced ultra-low NOx Green Choice™ gas burner
- Dynaclean™ diffuser dip tube help reduce lime and sediment buildup and maximize hot water output and is made from long lasting PEX cross linked polymer
- CoreGard™ anode rod have a stainless steel core that extend the life of the anode rod allowing superior tank protection far longer than standard anode rod
- Push button piezo ignitor make lighting the pilot fast and easy with one hand push button spark ignition
- Aluminum/Zinc anode rod
This ProLine® Gas Water Heater feature intelligent control logic with an internal microprocessor that provide enhanced operating parameter and tighter differential for precise sensing and faster heating response to optimize performance. Eco-friendly non-CFC foam insulation, heat trap and specially designed combustion chamber combine to produce a high UEF for maximum saving on operating cost.
| Fuel Type | Natural Gas |
| Tank Capacity Range | 38 to 40 gal |
| Ultra Low NOx | Yes |
| Heating Capacity | 40 Kbtu/hr |
| Warranty Years | 6 |
| Type | Tall |
| Vent Type | Atmospheric |
| Blanket (Yes/No) | No |
| Series | ProLine® XE |
| Energy Factor | 0.65 |
| Tank Capacity | 40 gal |
| Condensing/Non Condensing | Non-Condensing |
| Dimensions | 20 in Dia x 64-1/4 in H |
| Finish | Blue Diamond® Glass Coated |
| Gas Connection | 1/2 in |
| Heating Element | CoreGard™ Magnesium Anode Rod |
| Ignition Type | Electronic |
| Pressure Rating | 150 psi |
| Recovery Rate | 42 gph at 90 deg F Rise |
| Tall or Short | Tall |
| Temperature Rating | 55 to 155 deg F |
| Vent Size | 3 or 4 in |
| Water Connection | 3/4 in NPT |
| Brand | AO Smith® |
| Package Width | 21.13 in |
| Package Height | 64.94 in |
| UNSPSC | 40101825 |
| Alternate Part Number 1 | GUF-40 |
| Package Length | 27 in |
| Country of Origin | MX |
| Manufacturer | A. O. Smith |
| UPC | 671657022228 |
| Manufacturer Part Number | 100272476 |
Temperature and Pressure Relief Valve
6 years Limited Tank/Parts
ANSI Z21.10.1|ASME Specified|ASHRAE/IES 90.1|CSA 4.1|CSA Design Certified|ENERGY STAR® Certified|Federal Energy Conservation Standard Effective April 16, 2015, in Accordance with The Energy Policy and Conservation Act|Green Choice™ The Eco-Friendly Gas Fired Burner|Low Lead Compliant|Meet UBC, CEC and HUD National Code
Residential Applications
