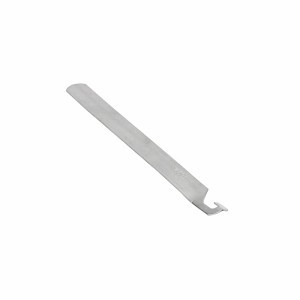

Retaining Strap, 1/2 in, Galvanized
PartBLNRRS128
MFGFIG 69R 1/2X8 RFCRTSTRP PGL
Description
B-Line TOLCO™ Beam Clamp Retaining Strap, Retrofit Capable, For Use With: B3033-1/2 Wide Jaw, B3034-1/2 Top Flange C-Clamp, 65-1/2 and 66-1/2 Beam Clamp, 9/16 in Dia Hole, 1/2 in Rod, Steel, Pre-Galvanized, 8 in L x 1.214 in W x 0.318 in D
- To offer more secure fastening of various types of beam clamps to beam where danger of movement might be expected
- NFPA 13 requires the use of retaining straps with all beam clamps installed in earthquake areas
- Satisfies requirements of NFPA 13
Eaton B-Line Series TOLCO seismic structural components are ideal for attaching seismic bracing to various structural members, including wide flange beams, I-beams, C-channel, welded steel trusses, steel bar joists, and more.Break-off bolt heads provide visual verification of proper torque and installation to the structure and attachment to the seismic brace component.
| Type | Retaining Strap |
| Nominal Size | 1/2 in |
| Finish | Galvanized |
| Dimensions | 7.937 in L x 1.214 in W x 0.318 in D |
| Length | 8 in |
| Material | Steel |
| Series | Fig 69R |
| Specifications | 9/16 in Dia Hole, 1/2 in Rod, 8 in L |
| Suitable For Use With | B3033-1/2 Wide Jaw, B3034-1/2 Top Flange C-Clamp, 65-1/2 and 66-1/2 Beam Clamp |
| Brand | B-Line |
| Package Width | 1.214 in |
| Package Height | 0.5 in |
| UNSPSC | 30101804 |
| Alternate Part Number 1 | 11811983|Y216004080 |
| Package Length | 8 in |
| Country of Origin | US |
| Manufacturer | Eaton |
| UPC | 782051714135 |
| Manufacturer Part Number | FIG 69R 1/2X8 RFCRTSTRP PGL |
UL Listed
