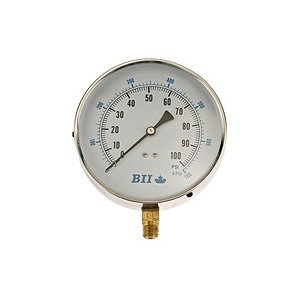

Pressure Gauge, 4-1/2 in Dial, 0 to 100 psi, 1/4 in MNPT Bottom Connection
PartBOSPG45100NL
MFGPG45-100NL
Description
Boshart Industries Contractor Gauge, Lead-Free Dry, 0 to 100 psi Pressure, 1/4 in Connection, 4-1/2 in Diameter Dial, +/- 1% Full Scale Accuracy, Graduations: 1 psi, -40 to 140 deg F, Lower Mounting, 304 Stainless Steel, 1.2 in L x 4.9 in W x 5.85 in H Dimensions
Price/Availability Accessible On Login
Documentation
- Extra large dial face with readjustable pointer
These pressure gauges are general purpose but are not for use with oxygen. These gauges feature an extra large dial face with a re adjustable pointer.
| Type | Pressure |
| Fill Type | Dry |
| Connection Size | 1/4 in |
| Mounting Type | MNPT Bottom |
| Pressure Range | 0 to 100 psi |
| Dial Diameter | 4-1/2 in |
| Accuracy | +/- 1% Full Scale |
| Connection Type | MNPT Bottom |
| Dimensions | 1.2 in L x 4.9 in W x 5.85 in H |
| Graduations | 1 psi |
| Material | 304 Stainless Steel |
| Temperature Rating | -40 to 140 deg F |
| Brand | Boshart Industries |
| Package Width | 11.3 in |
| Package Height | 8.3 in |
| UNSPSC | 23171902 |
| Package Length | 11.5 in |
| Country of Origin | CN |
| Manufacturer | Boshart Industries |
| UPC | 777808436323 |
| Manufacturer Part Number | PG45-100NL |
ASME B40.1|NSF/ANSI 372|PROP65: This product contains Lead known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to - www.P65Warnings.ca.gov|CSA Approved
Potable Water pumps and Systems, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors, Commercial Air, Water and Steam Services
