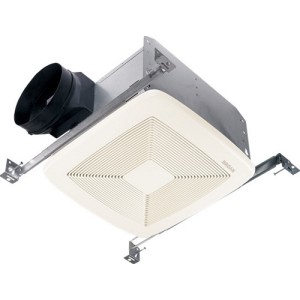

QT™ Bathroom Fan, 80 cfm, 120 VAC, 1 ph
PartBRNQTXE080
MFGQTXE080
Description
Broan® Heat-A-Ventlite® Bathroom Ventilation Fan, Ultra-Quiet, Series: QTXE, 80 cfm, 6 in Duct Dia, 120 V AC, 0.2 A, 60 Hz, 23.3 W, 0.3 Sones, 13 in Grille Length, 13-3/4 in Grille Width, Polymer Grille, 10-1/2 in Housing Length, 11-3/8 in Housing Width, 7-5/8 in Housing Height, Galvanized Steel Housing, Ceiling Mount, Humidity Sensing: No, Motion Sensing: No, White, Domestic
Price/Availability Accessible On Login
- Plug-in, permanently lubricated motor engineered for continuous operation
- Dynamically balanced centrifugal blower wheel for quiet, efficient performance
- Low rpm for quiet operation blower
- Rugged construction
- Polymeric duct connector with tapered sleeve and no metallic clatter
- 7-5/8 in height allows for 2 x 8 in (nominal) joist installations
- Sturdy, easy, 4-point mounting directly to joist
- 6 in round ducting for superior performance, Horizontal duct direction
- Innovative design - the result of extensive research with designers and consumers
- Fan shall have corrosion resistant galvanized steel housing with 4-point mounting capability
- Blower assembly shall be removable, have a centrifugal type blower wheel and a permanently lubricated motor designed for continuous operation
- Includes unique, patented spacer for mounting to engineered I joists
- Includes hanger bars to position housing anywhere between 16 to 24 in on-center joists
- Two sets of mounting holes for hanger bars allow flush installation with bottom or top of drywall
- Can be mounted in ceilings upto 12/12 pitch
- Hanger bars for easy, fast and universal installation in all types of construction
- Can be used to comply with ASHRAE 62.2 and CALGreen
- No nightlight
- 80 cfm at 0.1 in SP/55 cfm at 1/4 in SP airflow rate
Broan® QT series ventilation products offer the rare combination of power and extremely quiet operation. Offered with a variety of additional functions such as lights, nightlights and heaters.
| Type | Fan |
| Air Flow Rate | 80 cfm |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Series | QT™ |
| Color | White |
| Current/Amps | 0.2 A |
| Domestic/Import | Domestic |
| Duct Diameter | 6 in |
| Flow Rate | 80 cfm |
| Frequency Rating | 60 Hz |
| Grille Length | 13 in |
| Grille Material | Polymer |
| Grille Width | 13-3/4 in |
| Housing Height | 7-5/8 in |
| Housing Length | 10-1/2 in |
| Housing Material | Galvanized Steel |
| Housing Width | 11-3/8 in |
| Humidity Sensing | No |
| Motion Sensing | No |
| Mounting Type | Ceiling |
| Sones | 0.3 |
| Wattage Consumption | 23.3 W |
| Brand | Broan® |
| Package Width | 1.29 in |
| Package Height | 0.94 in |
| UNSPSC | 40101502 |
| Alternate Part Number 1 | 8495787 |
| Package Length | 1.32 in |
| Country of Origin | US |
| Manufacturer | Broan-NuTone |
| UPC | 026715163755 |
| Manufacturer Part Number | QTXE080 |
Damper/Duct Connector
3 Years
UL Listed|ENERGY STAR® Qualified|HVI 2100 Certified
For use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only), bathrooms upto 75 sq-ft
