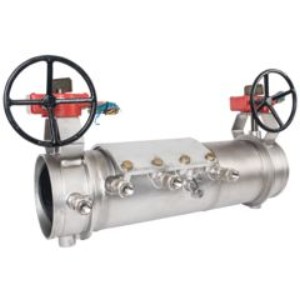

Double Check Backflow Device, 8 in, Groove, 304/304L Stainless Steel
PartDER8020BFG
MFGD-8020
Description
Ames Fire & Waterworks® Double Check Valve Assembly, Lead Free, Series: Deringer™ 20, 8 in Nominal, Grooved, 10 to 175 psi, 33 to 140 deg F, Dual Check Backflow, Media: Potable Water, 304 Stainless Steel Body, 30.7 in L x 13.8 in W x 15.8 in H
Price/Availability Accessible On Login
- Tamper-resistant test cocks
- Integral shutoffs for shorter lay length and lightweight construction
- Prewired supervisory switches
- Dual-action check module for low-and high-flow performance
This 8 in Ames Fire & Waterworks® Deringer™ 20 double check valve assembly is designed to prevent non-health hazard pollutants from entering the potable water supply system caused by backflow due to backpressure and/or backsiphonage conditions. Deringer™ 20 features integral Eccentric-Seal™ butterfly shutoff valves for a short lay length, integrated tamper switches and Dual-Action™ checks for high performance at low and high flow rates. It may be installed under continuous pressure service to protect against both backpressure and backsiphonage. Maximum working pressure is 175 psi (12 bar).
| Type | Double Check |
| Series | 20 |
| Nominal Size | 8 in |
| End Style | Groove |
| Body Material | 304/304L Stainless Steel |
| Backflow Type | Dual Check |
| Dimensions | 30.7 in L x 13.8 in W x 15.8 in H |
| Domestic/Import | Domestic |
| Media | Potable Water |
| Pressure Rating | 10 to 175 psi |
| Temperature Rating | 33 to 140 deg F |
| Brand | Ames Fire & Waterworks® |
| Package Width | 36 in |
| Package Height | 18 in |
| UNSPSC | 40141600 |
| Alternate Part Number 1 | DERINGER 20 8 |
| Package Length | 18 in |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 737733033059 |
| Manufacturer Part Number | D-8020 |
1 year Limited
ASSE 1015|AWWA C510-07/C606|Buy American Act Compliant|cULus Listed|FM Approved|NSF/ANSI 372|UL Listed|USC Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Fire Protection, Waterworks, Plumbing and Irrigation Applications
