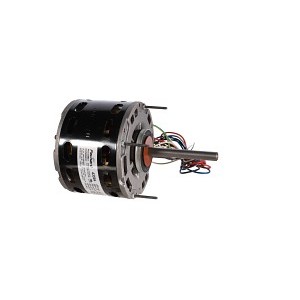

HVAC Motor, 1/3 hp, 1075 rpm, 120 VAC, 1 ph
PartDIV43585
MFG43585
Description
Packard Direct Drive Blower Motor, Fan & Blower Motors Application, 1/3 hp, 115 VAC, 6 A, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 3 Speed, Open Enclosure, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Reversible Rotation, 1 Service Factor, Sleeve Bearing, Mounting Kit Mounting, 40 deg C Ambient, Insulation Class: Class B, 5-5/8 in Dia Dimensions
Price/Availability Accessible On Login
- Electrically reversible
- Automatic overload protection
- Standard efficiency design
- 4-1/2 in shaft extension
- Extended thru-bolts on shaft end
- 2-1/2 in resilient ring
- Continuous air-over
- Designed for continuous air-over applications, such as furnace blowers or central air handling units with single shaft requirements
- Capacitor not included
- 1 load factor
- POC5 capacitor
- 370 VAC capacitor required
| Power Rating | 1/3 hp |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Speed | 1075 rpm |
| Amperage Rating | 6 A |
| Application Type | Fan & Blower Motors |
| Bearing Type | Sleeve |
| Dimensions | 5-5/8 in Dia |
| Enclosure Type | Open |
| Frame | 48 |
| Frequency Rating | 60 Hz |
| Horsepower | 1/3 hp |
| Insulation Class | Class B |
| Mounting Type | Mounting Kit |
| Number of Speeds | 3 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Size | 1/2 in Dia x 4-1/2 in L |
| Temperature Rating | 40 deg C Ambient |
| Brand | Packard |
| Package Width | 8.2 in |
| Package Height | 8.3 in |
| UNSPSC | 26101105 |
| Package Length | 16.6 in |
| Country of Origin | CN |
| Manufacturer | Packard |
| UPC | 840899112633 |
| Manufacturer Part Number | 43585 |
For continuous air over applications such as furnace blowers or central air handling units with single shaft requirements
