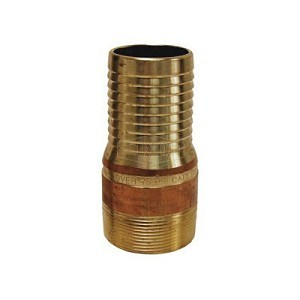

King™ Combination Nipple, 1-1/2 x 4-5/32 in L Hose Shank x MNPT, Brass
PartDIXBST20
MFGBST20
Description
Dixon® Combination Nipple, Series: King™, 1-1/2 in Nominal, Hose Shank x MNPT, 4-5/32 in Length, Brass, 1-17/32 x 1-29/32 in Dia, Domestic
Price/Availability Accessible On Login
Documentation
- Crimp sleeves are available and recommended for reliable assemblies
- The working pressure may vary with the construction of the hose, the type of clamping system used and the application
- In accordance with the Association for rubber products manufacturers (ARPM) bulletin for oil suction and discharge hose
- NPT threaded end no knurl
- King combination nipples are not recommended for steam
- In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement
- Not for compressible products such as air or nitrogen
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
| Fitting/Connector Type | Adapter |
| Nominal Size | 1-1/2 in |
| Type | Male |
| End Style | Hose Shank x MNPT |
| Material | Brass |
| Finish | Brass |
| Domestic/Import | Import |
| Dimensions | 1-29/32 in Dia |
| Length | 4-5/32 in |
| Series | King™ |
| Brand | Dixon® |
| UNSPSC | 40141734 |
| Country of Origin | US |
| Manufacturer | Dixon Valve & Coupling |
| Manufacturer Part Number | BST20 |
Prop 65: Cancer and Reproductive Harm- www.P65Warnings.ca.gov.
For low-pressure discharge and suction service for compatible liquids
