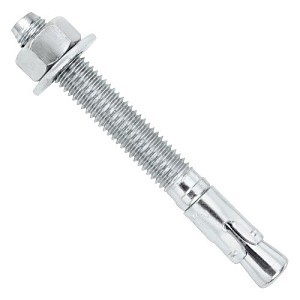

Power-Stud®+ SD1 Wedge Anchor, 3/8 in, 2-1/4 in L, Electrogalvanized
PartDWTW38214
MFG7410SD1-PWR
Description
DeWALT®, 7410SD1-PWR, Wedge Expansion Anchor, Series: Power-Stud®+ SD4, 3/8 in Diameter, 2-1/3 in Overall Length, 7/8 in Thread Length, Carbon Steel, Zinc Plated, 3/8-16 Thread
Price/Availability Accessible On Login
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit size is the same as the anchor diameter
- Length ID code and identifying marking stamped on head of each anchor
| Type | Wedge |
| Size | 3/8 in |
| Length | 2-1/4 in |
| Finish | Electrogalvanized |
| Series | Power-Stud®+ SD1 |
| Diameter | 3/8 in |
| Material | Carbon Steel |
| Overall Length | 2-1/3 in |
| Thread Length | 7/8 in |
| Thread Size | 3/8-16 |
| Brand | DeWALT® |
| Manufacturer | Radians |
| UPC | 075352775937 |
| Manufacturer Part Number | 7410SD1-PWR |
ICC-ES ESR-2818|ESR-2966|ACI 355.2/ASTM E488 and ICC-ES AC193|ASTM E488 and ICC-ES AC01|UL Listed File No EX1289|FM Approved
Structural connections, Barriers and guards, Mezzanines and racking, Trapeze/overhead utilities, Equipment anchorage, Safety-related attachments, Fencing and railing, Tension zone applications, pipe supports, fire sprinklers, Ledgers, angles and brackets, Wind and seismic loading (SDC A - F)
Price/Availability Accessible On Login
DeWALT®Power-Stud®+ SD1 Wedge Anchor, 3/8 in, 2-1/4 in L, Electrogalvanized
