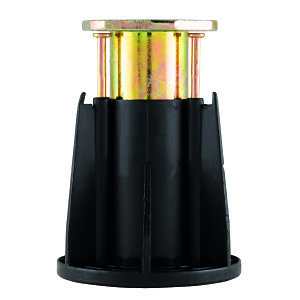

Wood-Knocker®II Cast-In-Place Anchor, 5/8 & 3/4 in, Electrogalvanized
PartDWTWK5834
MFGPFM2525834
Description
DeWALT® Wood-Knocker®II Concrete Insert, Cast-In-Place, 5/8 in, 3/4 in Diameter, 5/8 in, 15/16 in Thread Length, Carbon Steel/Engineered Plastic, UNC Thread, 3/8-16, 5/8-11 Thread, 2 in Overall Length, Zinc Plated
Price/Availability Accessible On Login
Documentation
- Fast and simple to install, low installed cost
- Color coded by size for simple identification
- Wood-Knocker®II+ and Pan-Knocker™II+ can be installed in form pours only 3-1/2 in THK (see installation details)
- Hex head does not rotate when set
- Insert design allows for full thread engagement
- Suitable for seismic and wind loading
Wood-Knocker®II and Pan-Knocker™II concrete inserts are installed onto forms used to support newly poured concrete floor slabs, roof slabs or walls. The concrete inserts are specifically designed to provide hanger attachments for mechanical, electrical, plumbing (MEP) and fire protection. When the forms are stripped, the color-coded flange is visibly embedded in the concrete surface. The inserts allow the attachment of steel threaded rod or threaded bolts in sizes ranging from 1/4 to 3/4 in Dia, including a 1/4 to 3/8 in and 3/8 to 1/2 in and 1/4-3/8-1/2 multi version. The hex impact plate offers resistance to rotation within the concrete as a steel threaded rod or threaded bolt is being installed.
| Type | Cast-In-Place |
| Size | 5/8 & 3/4 in |
| Finish | Electrogalvanized |
| Series | Wood-Knocker®II |
| Diameter | 5/8 in, 3/4 in |
| Material | Carbon Steel/Engineered Plastic |
| Overall Length | 2 in |
| Thread Length | 5/8 in, 15/16 in |
| Thread Size | 3/8-16, 5/8-11 |
| Thread Type | UNC |
| Brand | DeWALT® |
| Package Width | 2.36 in |
| Package Height | 2.76 in |
| UNSPSC | 31162400 |
| Package Length | 2.36 in |
| Country of Origin | CN |
| Manufacturer | Stanley Black & Decker |
| UPC | 075352320816 |
| Manufacturer Part Number | PFM2525834 |
AISI 1008|ASTM E488|ASTM B633 (Fe/Zn5)|ESR-3657|FM Approved|IBC/IRC 2018/2015/2012/2009|ICC-ES AC446
Hanging Pipe and Sprinkler Systems, HVAC Ductwork and Strut Channels, Suspending Trapeze and Cable Trays, Mechanical Unit Overhead Utilities, Conduit and Lighting System, Seismic Loading and Cracked Concrete
