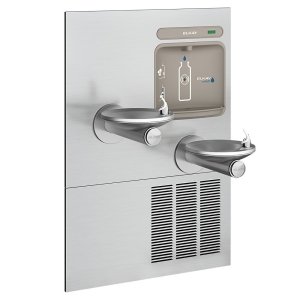

ezH2O® Bottle Filling Station with Bi-Level Integral SwirlFlo Fountain Refrigerated Non-Filtered Refrigerated Stainless
PartELKEZWSERPBM28K
MFGEZWS-ERPBM28K
Description
Elkay® Bottle Filling Station and Integral SwirlFlo Fountain, Lead Free Non-Filtered, Series: EZH2O®, 1.1 gpm, Operation: Sensor, Chilling Option: Refrigerated, 20 to 105 psi, Wall Mount, 115 V AC 60 Hz, R-134A Refrigerant, Stainless Steel, Stainless Steel, 38-1/2 in W x 18-3/8 in D, Domestic
Price/Availability Accessible On Login
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-button activation (bubbler)
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst
- Fill rate is 1.1 GPM
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
- Laminar flow provides clean fill with minimal splash
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
- Real drain system eliminates standing water
- Rated for indoor use
The Elkay® EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20 sec shut-off timer.
| Type | Refill Station & Drinking Fountain Combo |
| Mounting Type | Wall |
| Chilling Option | Refrigerated |
| ADA Compliance (Yes/No) | Yes |
| Series | EZH2O® |
| Dimensions | 38-1/2 in W x 18-3/8 in D |
| Domestic/Import | Domestic |
| Electrical Ratings | 115 V AC 60 Hz |
| Finish | Stainless Steel |
| Flow Rate | 1.1 gpm |
| Material | Stainless Steel |
| Operation | Sensor |
| Pressure Rating | 105 psi |
| Refrigerant Type | R-134A |
| Brand | Elkay® |
| Package Width | 60.75 in |
| Package Height | 39.875 in |
| UNSPSC | 48101710 |
| Package Length | 59.75 in |
| Item Width | 19 in |
| Item Length | 38.5 in |
| Country of Origin | US |
| Item Height | 55.0625 in |
| Manufacturer | Elkay Manufacturing |
| UPC | 094902015668 |
| Manufacturer Part Number | EZWS-ERPBM28K |
Fountain with Integral Bottle Filling Station (ERPBD28WSC), Mounting Frame (MFWS210), Chiller (ECH8)
1 Year Limited
ADA Compliant|ICC A117.1|ASME A112.19.3/CSA B45.4|BAA Compliant|CAN/CSA C22.2# 120|NSF/ANSI 61/372 (Lead Free)|UL 399 Listed
Indoor Application
