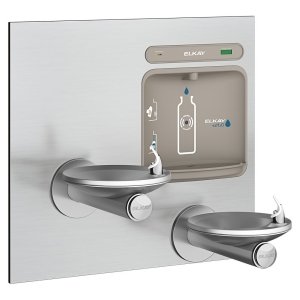

ezH2O® Bottle Filling Station with Bi-Level Integral SwirlFlo Fountain Filtered Non-Refrigerated Stainless
PartELKLZWSEDFPBM117K
MFGLZWS-EDFPBM117K
Description
Elkay® Bottle Filling Station and Integral SwirlFlo Fountain, Lead Free Filtered Barrier Free, Series: EZH2O®, 1.5 gpm, Operation: Push Button/Sensor, Chilling Option: Non-Refrigerated, 2 Basin, 20 to 105 psi, 1-1/2 in Drain, Wall Mount, 115 V AC 60 Hz 15 W, Stainless Steel, Stainless Steel, 38-1/2 in W x 18-3/8 in D x 34-5/8 in H, Domestic
Price/Availability Accessible On Login
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-button activation (bubbler)
- Fill rate is 1.5 GPM
- Visual filter monitor with LED filter status indicator for when filter change is necessary
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
- Laminar flow provides clean fill with minimal splash
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
- Real drain system eliminates standing water
- Rated for indoor use
The Elkay® EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete water station including single fountain with integral bottle filler. Bottle Filler features sanitary no-touch sensor activation with automatic 20 sec shut-off timer.
| Type | Refill Station & Drinking Fountain Combo |
| Mounting Type | Wall |
| Chilling Option | Non-Refrigerated |
| ADA Compliance (Yes/No) | Yes |
| Series | EZH2O® |
| Dimensions | 38-1/2 in W x 18-3/8 in D x 34-5/8 in H |
| Domestic/Import | Domestic |
| Drain Connection | 1-1/2 in |
| Electrical Ratings | 115 V AC 60 Hz 15 W |
| Finish | Stainless Steel |
| Flow Rate | 1.5 gpm |
| Material | Stainless Steel |
| Number of Basins | 2 |
| Operation | Pushbutton/Sensor |
| Pressure Rating | 105 psi |
| Brand | Elkay® |
| Package Width | 45.25 in |
| Package Height | 39.875 in |
| UNSPSC | 48101710 |
| Package Length | 41.625 in |
| Item Width | 19 in |
| Item Length | 38.5 in |
| Country of Origin | US |
| Item Height | 36.625 in |
| Manufacturer | Elkay Manufacturing |
| UPC | 094902015828 |
| Manufacturer Part Number | LZWS-EDFPBM117K |
Fountain with Integral Bottle Filling Station (EDFPBM117WS-F), Mounting Frame (MFWS200), Filter
1 Year Limited
ADA Compliant and ICC A117.1|ASME A112.19.3/CSA B45.4|CAN/CSA C22.2# 120|NSF/ANSI 42|53|61|372 (Lead Free)|UL 399 Listed|WQA Certified
Indoor Application
