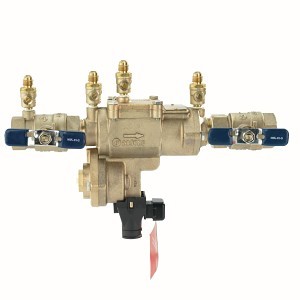

LF860 Reduced Pressure Backflow Preventer, 1 in, FNPT, Bronze
PartFBOLF8601
MFG0683002
Description
Febco®, 0683002, Reduced Pressure Zone Assembly, Small Diameter, Series: LF860 Small, 1 in Nominal, Thread End Style, 175 psi Pressure, 32 to 140 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Cast Copper Silicon Alloy Body, 12-1/2 in L Dimensions, Import
Price/Availability Accessible On Login
- The handle on the shutoff valve can be removed to discourage tampering
- Top mounted test cock
- Stainless steel spring
- Replaceable seats and discs
- 350 psi hydrostatic test pressure
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
This 1 in lead free reduced pressure zone assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries and chemical plants. It is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This pressure zone assembly consists of a lead free cast copper silicon alloy body, threaded quarter turn ball valves, top mounted test cocks, spring loaded check valves and a pressure differential relief valve.
| Nominal Size | 1 in |
| End Style | FNPT |
| Body Material | Bronze |
| Series | LF860 |
| Ball Valve/Gate Valve Type | Quarter-Turn Ball Valve |
| Dimensions | 12-1/2 in L |
| Domestic/Import | Import |
| Pressure Rating | 175 psi |
| Temperature Rating | 32 to 140 deg F |
| Type | Small Diameter |
| Brand | Febco® |
| Package Width | 7.09 in |
| Package Height | 3.86 in |
| UNSPSC | 40141616 |
| Alternate Part Number 1 | LF860-QT RP |
| Package Length | 12.4 in |
| Country of Origin | CN |
| Manufacturer | Watts Water Technologies |
| UPC | 098268455236 |
| Manufacturer Part Number | 0683002 |
1 Year Limited
Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ANSI/AWWA C511|ANSI/ASME B1.20.1|ASSE 1013|CSA B64.4|NSF/ANSI 61-G|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
