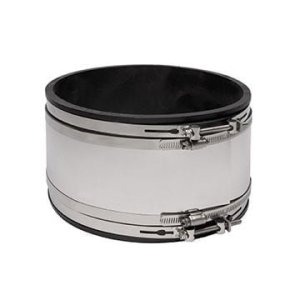

5003 Shielded Transition Coupling, 8 in, Clay x Asbestos Cement Fiber/Ductile Iron, PVC/Stainless Steel
PartFER500388RC
MFG5003-88RC
Description
Fernco® Repair Coupling, Strong Back Flexible, Series: 5003 RC, Fitting/Connector Type: Coupling, 8 in Nominal, Clay x Asbestos Cement Fiber/Ductile Iron, 5.94 in Length, 4.3 psi Tested, Flexible PVC, -30 to 140 deg F, 10.52 in OD
Price/Availability Accessible On Login
- 5000 strong back RC couplings offer a 0.012 in stainless steel shield and a molded in bushing
- 316 stainless steel clamp bands
- 6 in and larger couplings incorporate two nut and bolt take-up points per band
- 300 series clamps used
- 60 in-lb installation torque
- 60 duro shore A flexible PVC
Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment.
| Type | Shielded Coupling |
| Nominal Size | 8 in |
| Connection Type | Clay x Asbestos Cement Fiber/Ductile Iron |
| Material | PVC/Stainless Steel |
| Series | 5003 |
| Dimensions | 10.52 in OD |
| End Style | Clay x Asbestos Cement Fiber/Ductile Iron |
| Fitting/Connector Type | Coupling |
| Length | 5.94 in |
| Pressure Rating | 4.3 psi |
| Temperature Rating | -30 to 140 deg F |
| Brand | Fernco® |
| UNSPSC | 40172608 |
| Manufacturer | Fernco |
| UPC | 018578012264 |
| Manufacturer Part Number | 5003-88RC |
(2) Clamp and (1) Shear Ring
ASTM C1173/D5926|CSA B602|ICC ES® PMG|UPC Listed
