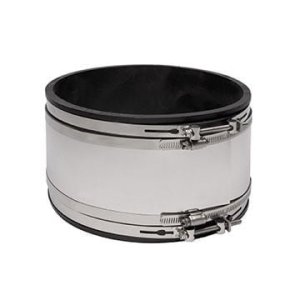

5051 Shielded Transition Coupling, 12 in, Ductile Iron/AC x Cast Iron/Plastic, PVC/Stainless Steel
PartFER50511212RC
MFG5051-1212RC
Description
Fernco® Repair Coupling, Strong Back Flexible, Series: 5051 RC, Fitting/Connector Type: Coupling, 12 in Nominal, Asbestos Cement Fiber/Ductile Iron x Cast Iron/Plastic, 4.3 psi Tested, Flexible PVC, -30 to 140 deg F, 13.2 in ID x 13.95 in OD
Price/Availability Accessible On Login
- 5000 strong back RC couplings offer a 0.012 in stainless steel shield and a molded in bushing
- 316 stainless steel clamp bands
- 6 in and larger couplings incorporate two nut and bolt take-up points per band
- 300 series clamps used
- 60 in-lb installation torque
- 60 duro shore A flexible PVC
Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment.
| Type | Shielded Coupling |
| Nominal Size | 12 in |
| Connection Type | Ductile Iron/AC x Cast Iron/Plastic |
| Material | PVC/Stainless Steel |
| Series | 5051 |
| Dimensions | 13.2 in ID x 13.95 in OD |
| End Style | Asbestos Cement Fiber/Ductile Iron x Cast Iron/Plastic |
| Fitting/Connector Type | Coupling |
| Pressure Rating | 4.3 psi |
| Temperature Rating | -30 to 140 deg F |
| Brand | Fernco® |
| UNSPSC | 40172608 |
| Manufacturer | Fernco |
| UPC | 018578011540 |
| Manufacturer Part Number | 5051-1212RC |
(2) Clamp, (1) Shear Ring, (1) Reducer and (1) Insert Bushing
ASTM C1173/D5926|CSA B602|ICC ES® PMG|UPC Listed
