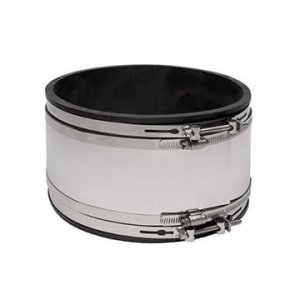

5051 Shielded Transition Coupling, 8 in, Ductile Iron/AC x Cast Iron/Plastic, PVC/Stainless Steel
PartFER505188RC
MFG5051-88RC
Description
Fernco® Repair Coupling, Strong Back, Series: 5051 RC, Fitting/Connector Type: Coupling, 8 in Nominal, Asbestos Cement/Ductile Iron x Cast Iron/Plastic, 5.97 in Length, 4.3 psi, 60 Duro Shore A Flexible PVC, -30 to 140 deg F, 10.06 in OD, Domestic
Price/Availability Accessible On Login
- Strong back RC couplings offer a 0.012 in stainless steel shield and a molded in bushing
- 60 in-lb installation torque
- 300 series clamps used
Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment.
| Type | Shielded Coupling |
| Nominal Size | 8 in |
| Connection Type | Ductile Iron/AC x Cast Iron/Plastic |
| Material | PVC/Stainless Steel |
| Series | 5051 |
| Dimensions | 10.06 in OD |
| Domestic/Import | Domestic |
| End Style | Asbestos Cement/Ductile Iron x Cast Iron/Plastic |
| Fitting/Connector Type | Coupling |
| Length | 5.97 in |
| Pressure Rating | 4.3 psi |
| Temperature Rating | -30 to 140 deg F |
| Brand | Fernco® |
| UNSPSC | 40172608 |
| Country of Origin | US |
| Manufacturer | Fernco |
| UPC | 018578011304 |
| Manufacturer Part Number | 5051-88RC |
(2) NBC-15.125-2 Clamp, (1) SRC-35 Shear Ring, (1) Insert Bushing
ASTM D5926/C1173|ICC ES® PMG|UPC Listed
Price/Availability Accessible On Login
Fernco®5051 Shielded Transition Coupling, 8 in, Ductile Iron/AC x Cast Iron/Plastic, PVC/Stainless Steel
