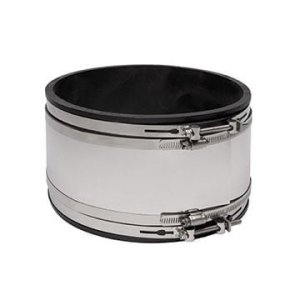

5055 Shielded Transition Coupling, 4 in, Asbestos Cement Fiber/Ductile Iron x Asbestos Cement Fiber/Ductile Iron, PVC/Stainless Steel
PartFER505544RC
MFG5055-44RC
Description
Fernco® Repair Coupling, Strong Back Flexible, Series: 5055 RC, Fitting/Connector Type: Coupling, 4 in Nominal, Asbestos Cement Fiber/Ductile Iron, 3.96 in Length, 4.3 psi Tested, Flexible PVC, -30 to 140 deg F, 4.76 in ID x 5.46 in OD
Price/Availability Accessible On Login
- 5000 strong back RC couplings offer a 0.012 in stainless steel shield and a molded in bushing
- 316 stainless steel clamp bands
- 300 series clamps used
- 60 in-lb installation torque
- 60 duro shore A flexible PVC
Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment.
| Type | Shielded Coupling |
| Nominal Size | 4 in |
| Connection Type | Asbestos Cement Fiber/Ductile Iron x Asbestos Cement Fiber/Ductile Iron |
| Material | PVC/Stainless Steel |
| Series | 5055 |
| Dimensions | 4.76 in ID x 5.46 in OD |
| End Style | Asbestos Cement Fiber/Ductile Iron |
| Fitting/Connector Type | Coupling |
| Length | 3.96 in |
| Pressure Rating | 4.3 psi |
| Temperature Rating | -30 to 140 deg F |
| Brand | Fernco® |
| UNSPSC | 40172608 |
| Manufacturer | Fernco |
| UPC | 018578009882 |
| Manufacturer Part Number | 5055-44RC |
(2) Clamp and (1) Shear Ring
ASTM C1173/D5926|CSA B602|ICC ES® PMG|UPC Listed
