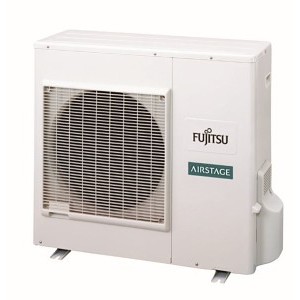

Outdoor Mini Split, 10.3 HSPF, 25 Kbtu/hr Heating, 22 Kbtu/hr Cooling, 208-240 VAC, 20 SEER, 13.3 EER
PartFJSAOU24RLXFZH
MFGAOU24RLXFZH
Description
Fujitsu Halcyon™ Outdoor Inverter Driven Heat Pump, Ductless Multi-Room Mini-Split Tri Zone, 24000 Btu/hr Nominal, 25000 Btu/hr Heating, 22000 Btu/hr Cooling, 208/230 V AC, 1.65/1.81 kW, 1 ph, 60 Hz Power Source, 13.3 EER, 20 SEER, 10.3 HSPF, 4.04 COP, Rotary Compressor, R-410A Refrigerant, 1/2 x 3/8 in Suction Line, 1/4 in Discharge Line, 30 A Fuse, 14 to 115 deg F Cooling/-15 to 75 deg F Heating, 50 dB Cooling/52 dB Heating Sound Level, 229 ft Maximum Piping Length, Wall Mounting, Painted Galvanized Steel, Beige, 41-5/16 in W x 17-1/2 in D x 38-3/16 in H Dimensions, Import
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
- Other models may go as low as -5°F, however they do not include a base heater and other advancements found in the XLTH models
- A high performance, low noise, large capacity DC twin rotary compressor is used.
- The compact size of the outdoor units allows for many installation opportunities.
- This unit has 2 service valves for each zone.
- , Installation - Allows for reduced installation time.
- Service - Allows for refigerant isolation of each zone.
- Add Ons - Ease of additional add-ons.
Contractors can select wither an 18, 24, or 36,000 BTU high-heat outdoor unit combined with a wall mounted, slim duct, compact cassette, or floor mount type indoor units. Mix-and-match flexibility of evaporator type and capacity allows you to choose the indoor unit that best fits the application, whether it be hidden or showcased. These systems are ideal for nursing homes, doctor's offices, condominiums, apartmetns and residences - any place where individual cooling or heating is needed.
| Indoor/Outdoor | Outdoor |
| Voltage Rating | 208-240 VAC |
| HSPF Rating | 10.3 |
| SEER Rating | 20 |
| EER Rating | 13.3 |
| Heating Capacity | 25 Kbtu/hr |
| Cooling Capacity | 22 Kbtu/hr |
| Color | Beige |
| Compressor Type | Rotary |
| COP Rating | 4.04 |
| Dimensions | 41-5/16 in W x 17-1/2 in D x 38-3/16 in H |
| Discharge Line Size | 1/4 in |
| Domestic/Import | Import |
| Fuse Size | 30 A |
| Material | Painted Galvanized Steel |
| Maximum Piping Length | 229 ft |
| Mounting Type | Wall |
| Nominal Capacity | 24000 Btu/hr |
| Power Source | 208/230 V AC, 1.65/1.81 kW, 1 ph, 60 Hz |
| Refrigerant Type | R-410A |
| Sound Level | 50 dB Cooling/52 dB Heating |
| Suction Line Size | 1/2 x 3/8 in |
| Temperature Rating | 14 to 115 deg F Cooling/-15 to 75 deg F Heating |
| Type | Ductless Multi-Room Mini-Split Tri Zone |
| Brand | Fujitsu |
| Package Width | 13 in |
| Package Height | 32.69 in |
| UNSPSC | 40101806 |
| Package Length | 35.44 in |
| Country of Origin | TH |
| Manufacturer | Fujitsu General |
| Manufacturer Part Number | AOU24RLXFZH |
5 Years on Parts/7 Years on Compressor
AHRI 210/240|EnergyStar® Certified
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
FujitsuOutdoor Mini Split, 10.3 HSPF, 25 Kbtu/hr Heating, 22 Kbtu/hr Cooling, 208-240 VAC, 20 SEER, 13.3 EER
