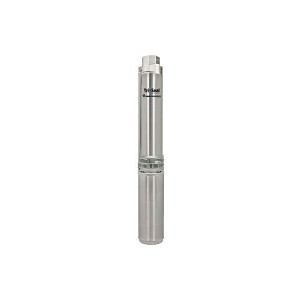

Groundwater Submersible Pump, 13-Stage, 3/4 hp, 7 gpm, 3-Wire
PartFKN7JR07S43W230
MFG96330740
Description
Franklin Electric, 96330740, Well Pump, Submersible, Series: J Class 3200, 7 gpm Flow Rate, 2 Wires, 13 Stage, 3/4 hp Power, 230 V AC, 8 A, 60 Hz Frequency, 1 ph, 62 % Service Factor, Acetal Impeller, 120 deg F, Kingsbury Thrust Bearing, AISI 304 Stainless Steel, 27.6 in L Dimensions
Price/Availability Accessible On Login
- Pump diameter is smaller than a standard 4-inch submersible for easier installation in reduced diameter 4 in wells
- Hex rubber bearing and ceramic shaft sleeve allows sand and abrasives to pass through, virtually eliminating shaft wear and upper bearing failures
- Improved hydraulic performance for deeper set depths at all horsepower and flow ratings
- Floating stage design allows for maximum efficiency while minimizing the downthrust load that is transferred to the motor
- Modified PPO diffuser and disc with 300 Series stainless steel thrust and eye seal protection for durability and abrasion resistance
- Acetal impeller provides high performance to increase pressure output while reducing system losses from friction
- Removable spring-loaded check valve
- Stainless steel pump intake screen and stainless steel cable guard
- 86 deg F Motor Ambient Temperature Rating Nominal
- Powered by corrosion-resistant Franklin Electric submersible 4-inch motor with lightning protection
| Type | Pump |
| Flow Rate | 7 gpm |
| Power Rating | 3/4 hp |
| Number of Stages | 13 |
| Number of Wires | 3 |
| Amperage Rating | 8 A |
| Bearing Type | Kingsbury Thrust |
| Dimensions | 27.6 in L |
| Frequency Rating | 60 Hz |
| Impeller Type | Acetal |
| Material | AISI 304 Stainless Steel |
| Phase | 1 ph |
| Series | J Class 3200 |
| Service Factor | 62 % |
| Temperature Rating | 120 deg F |
| Voltage Rating | 230 V AC |
| Brand | Franklin Electric |
| Manufacturer | Franklin Electric |
| Manufacturer Part Number | 96330740 |
1 Year from Date of Install/2 Years from Date of Manufacturing
CSA Certified|ANSI/NSF Standard 61
Groundwater pumping in clean water well systems ideal for tight well applications 4 in and greater, Residential and Light Commercial
