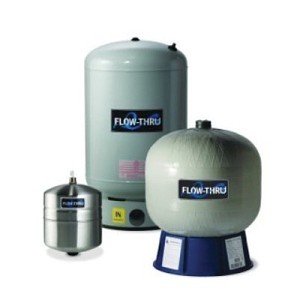

Flow-Thru™ Hydropneumatic Tank, 9 gal, 12-1/2 in Dia, 125 psi, Gray
PartFLXFT35S
MFGFT 35S
Description
Flexcon Well Tank, Series: Flow-Thru™, FNPT Discharge Connection Type, 1 in Discharge, 12-1/2 in Overall Dia, 18.9 in Height, 9 gal, 125 psi, 38 psig Precharge, 16 ga Steel
Price/Availability Accessible On Login
Documentation
- Patented watervane cicrulates water through the tank eliminating the possibility of stagnant water
- Flow-Thru technology ensures total circulation of the tank's water
- Stainless steel models stand up to the harshest environments
- 100% high pressure and helium tested. Backed by a 5 year warranty
- Flow-thru tanks are available in steel, stainless, composite
The Flow-Thru™ connection diverts system water into and, more importantly, out of the tank while the pump is running. This constant flushing action assures that the water in the tank remains as fresh as possible and eliminates the possiblity of stagnant water during normal system operations. The Flow-Thru™ features a 16-gauge solid steel tank finished with the highest quality urethane paint. Assuredly tested with a 100% pressure helium test and backed by a five year warranty. Like the rest of Flexcon's steel and new line of composite tanks, the Flow-Thru™ incorporates our patented controlled action diaphragm-CAD2. A steel- clench ring regulates movement and prevents the diaphragm from rubbing against the tank wall.
| Capacity | 9 gal |
| Diameter | 12-1/2 in |
| ASME Yes/No | No |
| Pressure Rating | 125 psi |
| Series | Flow-Thru™ |
| Color | Gray |
| Discharge Connection Type | FNPT |
| Discharge Outlet Size | 1 |
| Discharge Size | 1 in |
| Height | 18.9 in |
| Material | 16 ga Steel |
| Overall Diameter | 12-1/2 in |
| Precharge Rating | 38 psi |
| Brand | Flexcon |
| UNSPSC | 40151700 |
| Country of Origin | TW |
| Manufacturer | Flexcon Industries |
| Manufacturer Part Number | FT 35S |
American Ground Water Trust|ANSI 61/372|cUSA Certified|NSF 61/372|Water System Council
