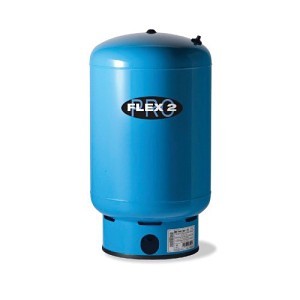

Flex2Pro Hydropneumatic Tank, 62 gal, 21 in Dia, 125 psi, Blue
PartFLXH2PSS65
MFGH2P 65
Description
Flexcon Water Well Tank, Series: Flex2Pro H2P, FNPT Discharge Connection Type, 1-1/4 in Discharge, 21 in Overall Dia, 48 in Height, 62 gal, 25 Max Acceptance Factor, 125 psi, 38 psi Precharge, Cold Rolled Steel
Price/Availability Accessible On Login
- 16 ga cold rolled steel tank
- Finish: Appliance-quality paint for indoor or outdoor installation
- Water chambers: top chamber is 100% butyl rubber, lower water chamber is copolymer polypropylene
- Testing: High pressure, seam weld, helium, final precharge check
- Brass air valve with O-ring seal
Designed for premium water system installations, the improved Flexcon FLEX 2 PRO H2P continues to set the Standard for steel well tanks. It's the only well water tank in this category that combines CAD-2 technology (Flexcon's famous controlled action diaphragm system) with a stainless steel water connection. The result is superior air and water separation and unmatched performance. Our patented manufacturing technique allows Flexcon to properly size the diaphragm in a full range of sizes from 14 to 119 gallons. Every tank undergoes a seam-weld test, high pressure test, and is subjected to our helium test. Before leaving the factory, a final air charge check insures each tank arrives at your home with the correct precharge. When you purchase a FLEX 2 PRO H2P, the world's most technologically advanced well tank bar none , you' re also purchasing the ultimate in peace of mind.
| Capacity | 62 gal |
| Diameter | 21 in |
| ASME Yes/No | No |
| Pressure Rating | 125 psi |
| Series | Flex2Pro |
| Color | Blue |
| Discharge Connection Type | FNPT |
| Discharge Size | 1-1/4 in |
| Height | 48 in |
| Material | Cold Rolled Steel |
| Max Acceptance Factor | 25 gal |
| Overall Diameter | 21 in |
| Precharge Rating | 38 psi |
| Brand | Flexcon |
| UNSPSC | 40151700 |
| Country of Origin | US |
| Manufacturer | Flexcon Industries |
| UPC | 795033031076 |
| Manufacturer Part Number | H2P 65 |
5 Years Limited
American Ground Water Trust|NSF/ANSI 61|TUV Certified|Water System Council
