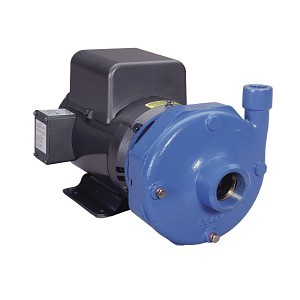

Close-Coupled 1-Stage Centrifugal Pump, 2 x 1-1/2 in, Bronze Fitted, 3/4 hp, 1800 rpm, 240/480 VAC, 3 ph, ODP
PartGLD3BF2D2AO
MFG3BF2D2A0
Description
Goulds End-Suction Centrifugal Pump, 1-Stage Close-Coupled, Series: 3656 S-Group, 2 in NPT Inlet, 1-1/2 in NPT Outlet, 3/4 hp Power, 230 to 460 VAC, 60 Hz Frequency, 3 ph ph, 175 psig Maximum, 1750 rpm Motor, Silicon Bronze Enclosed Impeller, 250 deg F, Open Drip-Proof Enclosure, Ball Bearing, Bronze Fitted, 23-3/4 in W Dimensions
Price/Availability Accessible On Login
- The model 3656 offers close coupled design for space saving and simplified maintenance
- Back pull-out to reduce maintenance down time
- Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency
- Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life
- Rigid cast iron motor adapter provides support and registered fits maintain positive unit alignment
- Rotation when viewed from suction end of pump, standard discharge position is 12 o-clock
- Carbon rotary, ceramic stationary, Buna-N elastomer, 316 stainless steel metal part and 10K13 mechanical seal
- 5-15/16 in Dia impeller
The series 3656/3756 are single stage, end suction, centrifugal pumps for general liquid transfer, booster applications, irrigation and general service pumping. Pumps are available in three different materials of construction- all iron, bronze-fitted and all bronze ("S" group only).
| Type | Close-Coupled 1-Stage |
| Material | Bronze Fitted |
| Inlet Size | 2 in |
| Outlet Size | 1-1/2 in |
| Power Rating | 3/4 hp |
| Speed | 1800 rpm |
| Voltage Rating | 240/480 VAC |
| Phase | 3 ph |
| Enclosure Type | ODP |
| Bearing Type | Ball |
| Dimensions | 23-3/4 in W |
| Frequency Rating | 60 Hz |
| Impeller Type | Silicon Bronze Enclosed |
| Maximum Pressure | 175 psig |
| Motor Speed | 1750 rpm |
| Series | 3656 S-Group |
| Temperature Rating | 250 deg F |
| Brand | Goulds |
| UNSPSC | 40151503 |
| Country of Origin | US |
| Manufacturer | Xylem |
| UPC | 697666024794 |
| Manufacturer Part Number | 3BF2D2A0 |
4-Pole NEMA JM/JP Frame Motor
1 Year Limited
ANSI/NSF 61/372|CSA Certified
Booster Service, Spraying Systems, Irrigation, Water Circulation, Liquid Transfer and General Purpose Pumping
