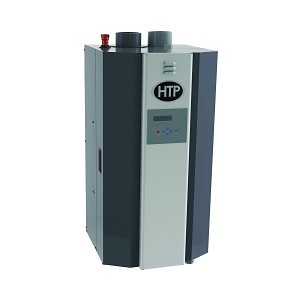

Elite FT® Boiler, 80 Kbtu/hr, Natural Gas
PartHTPEFT80
MFGEFT-80
Description
HTP Fire Tube Space Heating Boiler, High Efficiency, Series: Elite FT®, Liquid Propane/Natural Gas Fuel, 80000 Btu/hr Input, 3/4 in FNPT Connection, Direct Electronic Ignition, 96 % AFUE, Steel Housing Material, Wall Mounting, 17.5 in W x 17.4 in D x 32.5 in H Dimensions
Price/Availability Accessible On Login
- Heat exchanger - all stainless steel ASME "H" stamped construction
- Low pressure drop, gasket less, vertical tube combustion heat exchanger design - provides maintenance - free operation on internal buildup of material inside the combustion chamber
- Combustion system - modulating burner with up to 5 to 1 turndown
- High grade burner design
- Dual flame monitoring
- Integrated control system - digital operating control with 2 line/20 character LCD text display to program and monitor boiler operation
- 3-boiler set point temperature inputs - boiler pump - system pump - DHW pump/domestic hot water priority with timing
- Programmable settings - outdoor reset curve - DHW supply set point - step sequence for delayed response for smart zones - boost response - cascade up to 8-boilers
- Field connection board - line voltage terminal strip with 120 VAC/60 Hz power/low voltage terminal strip with multiple contacts - cascade wiring CAT 5/CAT 3
- 24 V monitoring
- 0 to 10 VDC input for building management system
- Boiler output regulation (adjustment of boiler output down to 50% of rated capacity)
- Low water protection device
- Password security - flashing maintenance indicator with optional programmed installer contact information
- Time clock/data logging - last 10 fault codes with date and time
- Customized freeze protection parameters
- Modbus enable through external adapter to monitor or control boiler through BMS system
- Superior condensate collection system with overflow protection switch
- Vents in plastic PVC - CPVC - stainless steel - ULC S636 flexible polypropylene vent liner (chimney lining only)
- Manual reset high temperature limit
The Elite FT® is a high efficiency heating boiler for residential and commercial applications. This versatile unit is wall hung and comes in five models, ranging from 80000 to 399000 Btus. It's exclusively designed stainless steel heat exchanger provides superior heat transfer. It has up to a 96.8% AFUE rating with a 5 to 1 turndown ratio. Top and bottom connections are featured on larger size units for greater installation options, as well as a 10 to 1 turndown ratio.
| Type | Boiler |
| Series | Elite FT® |
| Heating Capacity | 80 Kbtu/hr |
| Fuel Type | Natural Gas |
| AFUE Rating | 96 % |
| Connection Type | 1 in C Water, 3/4 in NPTF Gas |
| Dimensions | 17-1/2 in W x 17.4 in D x 32-1/2 in H |
| Gas Type | Natural Gas/Liquid Propane |
| Housing Material | Steel |
| Ignition Type | Direct Electronic Spark |
| Input Capacity | 80 KBtu/hr |
| Mounting Type | Wall |
| Ultra Low NOx | Yes |
| Vent Size | 3 in |
| Brand | HTP |
| UNSPSC | 40102000 |
| Manufacturer | Heat Transfer Products |
| Manufacturer Part Number | EFT-80 |
Temperature and Pressure Gauge, 30 psi Pressure Relief Valve, Indirect Sensor and Outdoor Sensor, PVC Intake with Screens, Exhaust PVC Coupling with Screens and Condensation Removal System
12 Years Limited
ANSI Z21.13|AHRI Certified|ARRA Approved|CSA 4.9|cETLus Listed|ENERGY STAR Certified|Energy Guide|Ultra Low Nox Emissions SCAQMD Rule 1146.2
Commercial/Residential Application
