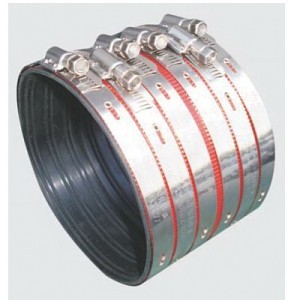

Heavy Duty Reducing Coupling, 4 x 2 in, No Hub, Stainless Steel
PartMIFCH42
MFGMI-XHUB-42
Description
MIFAB® Reducing Coupling, Heavy Duty Shielded, Series: MI-XHUB, Reducing Coupling Fitting/Connector, 4 x 2 in Nominal, No-Hub End Style, 304 Stainless Steel, 3 in H Dimensions, Domestic/Import: Import
Price/Availability Accessible On Login
- Red shield - A distinctive red stainless steel shield easily identifies MIFAB’s heavy duty MI-XHUB no hub couplings
- Mechanical interlocking clamp design - A one piece stainless steel screw housing mechanically interlocks the housing to the stainless steel band
- This one piece housing eliminates leak paths that can develop with welded or staked clamps
- Floating eyelet design - The stainless steel clamp bands can move independently from the corrugated stainless steel shield
- This independence prevents the shield from crimping during tightening which can lead to leaks
- 3/8 in Hex head screw - The stainless steel 3/8 in hex head screw is engineered to accept 80 in pounds of installation torque to ensure a secure band/shield assembly around the pipe/fittings
- Formed gasket design - The gasket is designed to form fit around the pipe and the inside of the shield so that when the clamping forces are applied, a superior sealing pressure and holding power is achieved
- MIFAB® gaskets are made from neoprene which meets the requirements of ASTM C564
MIFAB® Series MI-XHUB heavy duty shielded no hub couplings are manufactured with gaskets made from neoprene compound that meets the requirements of ASTM C-564 housed inside a Type 301 stainless steel corrugated shield. Four (2 through 4 in size), six (5 through 15 in size) Type 301 stainless steel clamps tightened with 3/8 in Type 305 stainless steel hex head screws surround the shield to provide the sealing force. MI-XHUB Series Couplings are tested and certified to the ASTM-C1540-2011, FM1680-1989 and CSA B602-2016 Standards and are listed with IAPMO. Also tested and certified by Intertek Testing Services to CAN/ULC S102.2-10 Smoke Test.
| Fitting/Connector Type | Reducing Coupling |
| Type | Heavy Duty |
| Nominal Size | 4 x 2 in |
| End Style | No Hub |
| Material | Stainless Steel |
| Dimensions | 3 in H |
| Domestic/Import | Import |
| Series | MI-XHUB |
| Brand | MIFAB® |
| UNSPSC | 40172600 |
| Country of Origin | TH |
| Manufacturer | Mifab Corp |
| UPC | 779897151170 |
| Manufacturer Part Number | MI-XHUB-42 |
ASSE Specified|ASTM C1540-2015|CSA B602-2016|CAN/ULC S102.2-10|cUPC Listed|FM 1680-1989|IAPMO Standard|MCAA Standard|PDI Certified|UPC Listed|PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm
For used to provide a positive and significant seal between no hub cast iron pipe and fittings
