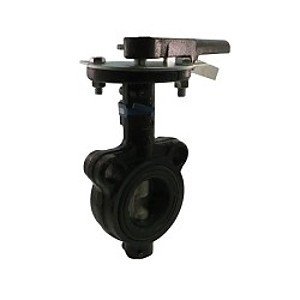

Wafer Style Butterfly Valve, Lever Handle, 2-1/2 in, Flange, 200 psi, Ductile Iron
PartMILMW233E212
MFGMW234E A K
Description
Milwaukee Valve Butterfly Valve, Wafer Style, Series: MW Series, 2-1/2 in Nominal, Lever Handle Actuator, 6 in Top to Inlet Center, Ductile Iron Body, 316 Stainless Steel Disc, 416 Stainless Steel (Stem)/Stainless Steel (Roll Pin) Stem & Pin Material, EPDM, 19.94 in H, Domestic
Price/Availability Accessible On Login
Documentation
- 200 psig non-shock
- Bubble tight shut-off
- Heavy duty design
- Phenolic cartridge design
- Low torque linear
- Low torque polymer bearing standard
- Field repairable
- Extended neck body
- Low profile disc
- Blow-out proof systems
- Vacuum rating to 29 in of mercury
- Note - the wetted surface of this product (in any material combination) contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
- EPDM seal/stem seal/liner
| Type | Wafer Style |
| Actuator Type | Lever Handle |
| Nominal Size | 2-1/2 in |
| End Style | Flange |
| Pressure Rating | 200 psi |
| Material | Ductile Iron |
| Body Material | Ductile Iron |
| Dimensions | 19.94 in H |
| Disc Material | 316 Stainless Steel |
| Domestic/Import | Domestic |
| Series | MW Series |
| Softgoods Material | EPDM |
| Stem & Pin Material | 416 Stainless Steel (Stem)/Stainless Steel (Roll Pin) |
| Top to Inlet Center | 6 in |
| Brand | Milwaukee Valve |
| Package Width | 5.5 in |
| Package Height | 10.44 in |
| UNSPSC | 40141620 |
| Package Length | 1.81 in |
| Country of Origin | US |
| Manufacturer | Milwaukee Valve |
| UPC | 697988399228 |
| Manufacturer Part Number | MW234E A K |
ABS Type Approved Cat A CFR-46|API-609|MSS SP-67 Type 1|US Coast Guard Category A Title 46 Federal Regulations 56.20-15|PROP65: Cancer and Reproductive Harm California Transparency in Supply Chains Act of 2010
Price/Availability Accessible On Login
Documentation
Milwaukee ValveWafer Style Butterfly Valve, Lever Handle, 2-1/2 in, Flange, 200 psi, Ductile Iron
