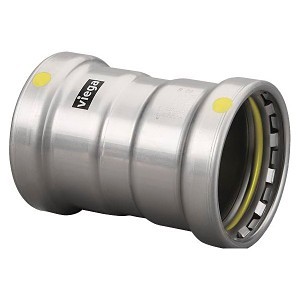

Gas Coupling, 3 in, Press, Carbon Steel
PartMPGC3
MFG28775
Description
MegaPress® Coupling, Series: Model 6615XL, Fitting/Connector Type: Coupling, 3 in Nominal, Press, SCH 40/STD, 125 psi for Fuel Gas/200 psi for Other Applications, -40 to 180 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 5.98 in L, Import
Price/Availability Accessible On Login
- Approved for more applications than any other carbon steel pipe press fitting system
- Suitable for use with ASTM SCH 5 to 40 carbon steel pipe in accordance with AHJ requirements
- Corrosion resistant zinc nickel coating
- Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
- Approved for underground applications, in accordance with code and local AHJ
- The same hanger and support requirements as threaded systems
- Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
Viega MegaPress®G is a carbon steel, cold press system designed for use in compressed air, fuel gas, and heating oil applications. Viega MegaPress®G fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 SCH 5 to SCH 40/STD carbon steel pipe. Viega MegaPress®G fittings for fuel gas or fuel oil systems shall be used with ASTM A53 SCH 40/STD carbon steel pipe. MegaPress®G is CSA LC4 approved for fuel oil and fuel gas installations.
| Fitting/Connector Type | Coupling |
| Nominal Size | 3 in |
| End Style | Press |
| Material | Carbon Steel |
| Dimensions | 5.98 in L |
| Domestic/Import | Import |
| Finish | Nickel Plated/Zinc Plated |
| Pressure Rating | 125 psi for Fuel Gas/200 psi for Other Applications |
| Schedule Rating | SCH 40/STD |
| Temperature Rating | -40 to 180 deg F |
| Brand | MegaPress®G |
| UNSPSC | 40170000 |
| Country of Origin | DE |
| Manufacturer | Viega |
| UPC | 691514287751 |
| Manufacturer Part Number | 28775 |
HNBR Sealing Element
10 years
ASTM/ASME B31.1/B31.3/B31.9/ANSI LC 4a|ABS Standard|ASME B31|ASTM A53/A106/A135/A795|CRN: 0A14541.5 A/B/C|CSA: ANSI LC 4a/CSA 6.32a|DNV-GL|IAPMO: ANSI LC 4a/CSA 6.32a|IAPMO National Standard Plumbing Code (NSPC)|IAPMO Uniform Mechanical Code (UMC)|IAPMO Uniform Plumbing Code (UPC)|ICC-ES: ANSI LC 4a/CSA 6.32a|ICC International Fuel Gas Code (IFGC)|ICC International Mechanical Code (IMC)|ICC International Residential Code (IRC)|Lead Law Compliant|Lloyd's Register CAN/CSA-B149.1|NACE RP0169-2002|NFPA 54/Z223: National Fuel Gas Code|NFPA 58: Liquefied Petroleum Gas Code|UMC Chapter 13 Section 1312.1.3|UPC Listed
Natural/Fuel Gas, Lubricants/Oils, Fuel Oils, Compressed Air Industrial Gases and Vacuum
