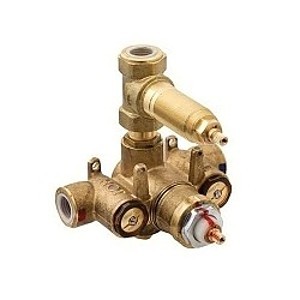

1-Port Thermostatic Rough-In Valve, 1/2 in, FNPT, 1 Way, 45 psi, 9 gpm, Solid Brass Body
PartNEW1741
MFG1-741
Description
Newport Brass® Thermostatic Rough-In Valve, 1-Port, 1/2 in FNPT Inlet Connection, 1/2 in FNPT Outlet, 1 Ways, 45 psi, 100 deg F, 9 gpm, Solid Brass Body, 5.43 in W x 4.86 in D x 5.96 in H
Price/Availability Accessible On Login
- Rough-In with integrated 2-way diverter and shut off control
- Built in check valves with service stops
- Provides anti-scald protection and temperature regulation
- High-temperature safety stop ensures water temperature maximum is 100 deg F
- Mounting tabs located on rough-in for secure installation option
- Requires Newport Brass® thermostatic trim
- Luxtherm® thermostatic rough-in valve
| Nominal Size | 1/2 in |
| End Style | FNPT |
| ADA Compliance (Yes/No) | No |
| Body Material | Solid Brass |
| Connection Size | 1/2 in |
| Connection Type | FNPT |
| Dimensions | 5.43 in W x 4.86 in D x 5.96 in H |
| Flow Rate | 9 gpm |
| Inlet Connection | 1/2 in FNPT |
| Number of Ways | 1 |
| Outlet Connection | 1/2 in FNPT |
| Pressure Rating | 45 psi |
| Temperature Rating | 100 deg F |
| Type | Rough Valve |
| Brand | Newport Brass® |
| UNSPSC | 30181808 |
| Manufacturer | Brasstech |
| UPC | 760724599432 |
| Manufacturer Part Number | 1-741 |
1 Years Warranty on Finish
ASME A112.18.1/CSA B125.1|ASSE 1016|IAPMO/cUPC/IPC Listed|US Federal and State Material Regulations
