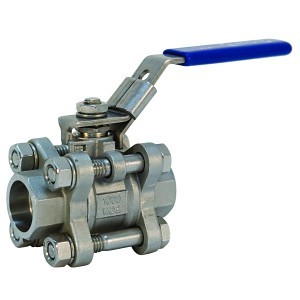

3-Piece Ball Valve, 3/4 in, Socket Weld, Full Port, Stainless Steel Ball, 304/304L Stainless Steel
PartNIBK595S6R66LL34
MFGNL99F48
Description
NIBCO® Ball Valve, 3-Piece, Series: K-595-S6-R-66-LL, 3/4 in Nominal, Socket Weld, 1000 psi, 400 deg F, Full Port, Media: Water, 0.81 in Orifice, Locking Lever Handle Actuator, Stainless Steel Ball, 3.03 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Trim, PTFE, Import
Notice
Price/Availability Accessible On Login- Blow-Out proof stem
- Vented ball
- Maximum temperature rating 400 deg F
- Socket weld end connections
- Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure
The NIBCO® stainless steel ball valve provides bubble-tight shut-off at 1000 psi. This valve features socket weld connections for easy installation. The 3-Piece valve may be used on hot/cold water, HVAC and is recommended for process piping, some chemical and utility service applications. This valve features a standard locking lever handle for security. It may be used for isolation and throttling (half open to full open only). The NIBCO® 3-Piece ball valve provides ease of operation with quarter-turn (90 deg) open to close. The reinforced PTFE seat ring and stainless steel stem and ball exhibit high chemical resistance properties and is recommended for process piping. Please refer to NIBCO® technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO® INC. 5-year 125% limited warranty.
| Nominal Size | 3/4 in |
| End Style | Socket Weld |
| Port Type | Full |
| Construction | 3-Piece |
| Material | 304/304L Stainless Steel |
| Ball Material | Stainless Steel |
| Actuator Type | Locking Lever |
| Body Material | Stainless Steel |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3.03 in |
| Media | Water |
| Orifice Size | 0.81 in |
| Pressure Rating | 1000 psi |
| Series | K-595-S6-R-66-LL |
| Softgoods Material | PTFE |
| Temperature Rating | 400 deg F |
| Top to Inlet Center | 2.87 in |
| Trim Material | Stainless Steel Stem |
| Brand | NIBCO® |
| Package Height | 4.528 in |
| UNSPSC | 40141607 |
| Country of Origin | TW |
| Manufacturer | NIBCO Inc. |
| UPC | 039923793928 |
| Manufacturer Part Number | NL99F48 |
5 Years Limited
MSS SP-110
Process Piping, Utility Service and Some Chemical Applications
