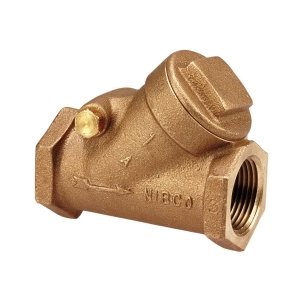

Swing Check Valve, 1/2 in, FNPT, Bronze
PartNIBT413Y12
MFGNL74006
Description
NIBCO® Swing Check Valve, Y-Pattern, Series: T-413-Y, 1/2 in Nominal, FNPT, 200 psi, 125 lb, Low Lead Compliance: No, Bronze Body, PTFE, Domestic
Notice
Price/Availability Accessible On Login- 125 psi/8.6 bar saturated steam to 353 deg F/178 deg C
- 200 psi/13.8 bar non-shock cold working pressure
- Renewable PTFE disc
- Regrindable seat
- Class 125 threaded end connections
The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The bronze check valve features threaded end connections for ease of installation. The check valve is recommended for commercial and industrial steam, water, oil and gas services. The NIBCO® check valve features a screw-in bonnet for accessibility to repair or replace parts. Swing check valves may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5-year 125% limited warranty.
| Nominal Size | 1/2 in |
| End Style | FNPT |
| Material | Bronze |
| Domestic/Import | Import |
| Body Material | Bronze |
| Low Lead Compliance | No |
| Pressure Class | 125 lb |
| Pressure Rating | 200 psi |
| Series | T-413-Y |
| Softgoods Material | PTFE Seat, Disc |
| Trim Material | Bronze |
| Type | Y-Pattern |
| Brand | NIBCO® |
| Package Width | 4.375 in |
| Package Height | 3.125 in |
| UNSPSC | 40141634 |
| Package Length | 13.312 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923634757 |
| Manufacturer Part Number | NL74006 |
5 years Limited
MSS SP-80|MSS SP-139|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Commercial, Mechanical and Industrial Applications
