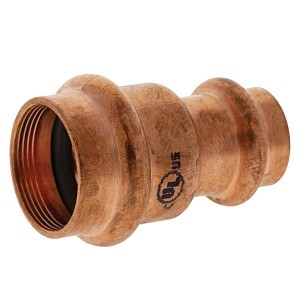

Reducer Coupling, 5/8 x 3/8 in, Press, Wrot ACR Copper
PartNPAR5838
MFG900117RPC
Description
NIBCO®, 900117RPC, Reducing Coupling, Series: PC9600-R, Fitting/Connector: Coupling, 5/8 x 3/8 in Nominal, Press End Style, 700 psi Pressure, -40 to 250 deg F, Wrot Copper, 1.11 in L x 0.69 in W x 0.69 in H Dimensions, Cast Method of Manufacture, Domestic
Price/Availability Accessible On Login
- Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder or flux
- The coupling has press connections
- The fitting provides a method to connect a larger size to a smaller size tube
NIBCO PressACR fittings are the fastest, easiest way to join copper tubing systems. NIBCO® PressACR fittings are designed to join with seamless copper water tube in aira conditioniong and refrigeration applications systems. The press fittings can also be installed underground. The NIBCO® PressACR fittings are user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO® PressACR applies the proven performance of press technology to NIBCO high pressure ACR fittings. NIBCO® PressACR fittings features a full range of precision engineered copper fittings, accessories, pressing tools and jaws. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO® PressACR copper fittings are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
| Fitting/Connector Type | Reducer Coupling |
| Nominal Size | 5/8 x 3/8 in |
| End Style | Press |
| Material | Wrot ACR Copper |
| Dimensions | 1.11 in L x 0.69 in W x 0.69 in H |
| Domestic/Import | Domestic |
| Method of Manufacture | Cast |
| Pressure Rating | 700 psi |
| Series | PC9600-R |
| Temperature Rating | -40 to 250 deg F |
| Brand | NIBCO® |
| Package Width | 0.95 in |
| Package Height | 1.25 in |
| UNSPSC | 40183100 |
| Package Length | 1.63 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923418364 |
| Manufacturer Part Number | 900117RPC |
Gray HNBR O-Ring
5 years Limited
ASME B31.5|ASHRAE 15|ASTM G85|Low Lead Compliant|NSF/ANSI 372|POE/PAG/MO/PAO/PVE/AB Oils Approved|UL 207/109
For PressACR™ fittings are designed to join with seamless copper water tube in air conditioning and refrigeration applications systems
Price/Availability Accessible On Login
NIBCO®Reducer Coupling, 5/8 x 3/8 in, Press, Wrot ACR Copper
