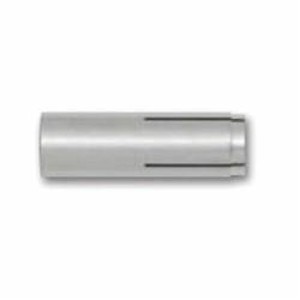

Dropin™ Drop-In Anchor, 3/8 in, 304/304L Stainless Steel
PartDWTDAS38
MFG06206-PWR
Description
DeWALT® Steel Dropin™ Expansion Anchor, Internally Threaded, 3/8 in Bolt/Rod, 3/8-16 Thread, 304 Stainless Steel, 1/2 in Drill, 1-9/16 in Minimum Embedment Depth, UNC Thread, 1-9/16 in Overall Length
Price/Availability Accessible On Login
- Internally threaded anchor for easy bolt removability and service work
- Smooth wall drop-in can be installed flush mounted or below the base material surface
- Flanged (lipped) version installs flush for easy inspection and standard embedment
- Coil thread version accepts coil rod and typically used for concrete formwork applications
The Steel Drop-in™ is an all steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, including lightweight concrete and concrete-filled steel deck members. The anchors can also be considered for hard stone and solid block base materials. A coil thread version for forming applications is also available.
| Type | Drop-In |
| Size | 3/8 in |
| Finish | 304/304L Stainless Steel |
| Series | Dropin™ |
| Bolt/Rod Size | 3/8 in |
| Drill Size | 1/2 in |
| Material | 304 Stainless Steel |
| Minimum Embedment Depth | 1-9/16 in |
| Overall Length | 1-9/16 in |
| Thread Size | 3/8-16 |
| Thread Type | UNC |
| Brand | DeWALT® |
| UNSPSC | 31162100 |
| Country of Origin | CN |
| Manufacturer | Stanley Black & Decker |
| UPC | 753520620684 |
| Manufacturer Part Number | 06206-PWR |
ASTM E488|FM Approved|UL Listed
Suspending Conduit, Cable Trays and Strut, Pipe Supports, Fire Sprinkler Supports, Concrete Formwork and Suspended Lighting
