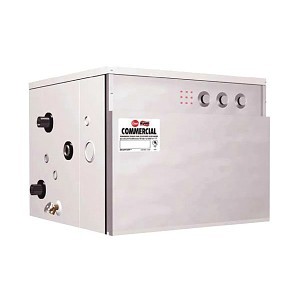

E Tall Electric Water Heater, 10 gal, 45 kW, 240 VAC, 1 ph
PartRHEE1045G
MFGE10-45-G
Description
Rheem® Electric Booster, 1-1/4 in NPT Inlet, 1-1/4 in NPT Outlet, 150 psi, 200 deg F, Domestic
Price/Availability Accessible On Login
- 10 gal electric booster will raise preheated or cold water to 180 deg F rinse temperature for compliance with UL sanitation (NSF5) and all Federal, state, county and local health department sanitation codes
- Models can be used as circulating tank commercial electric water heaters for gravity or pump circulation to an auxiliary storage tank
- Two magnesium anodes are installed in each tank for maximum corrosion resistance
- Single panel control box comes with hinged stainless steel door that provides immediate access to all electrical components and elements
- 45 kW power
Electric boosters are designed to fit under counters and deliver sanitizing rinse water for all stationary rack and conveyor type commercial dishwashers.
| Tank Capacity Range | 10 to 15 gal |
| Power Rating | 45 kW |
| Voltage Rating | 240 VAC |
| Phase | 1 ph |
| Type | Tall |
| Series | E |
| Tank Capacity | 10 gal |
| ASME Yes/No | No |
| Domestic/Import | Domestic |
| Inlet Size | 1-1/4 in |
| Outlet Size | 1-1/4 in |
| Pressure Rating | 150 psi |
| Temperature Rating | 200 deg F |
| Brand | Rheem® |
| UNSPSC | 40101825 |
| Country of Origin | US |
| Manufacturer | Rheem Manufacturing |
| Manufacturer Part Number | E10-45-G |
Temperature and Pressure Relief Valve
3 Years Limited On Tank
AHRI Certified|CSA Certified|UL Listed|Prop65: This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
Commercial Applications
Price/Availability Accessible On Login
Rheem®E Tall Electric Water Heater, 10 gal, 45 kW, 240 VAC, 1 ph
